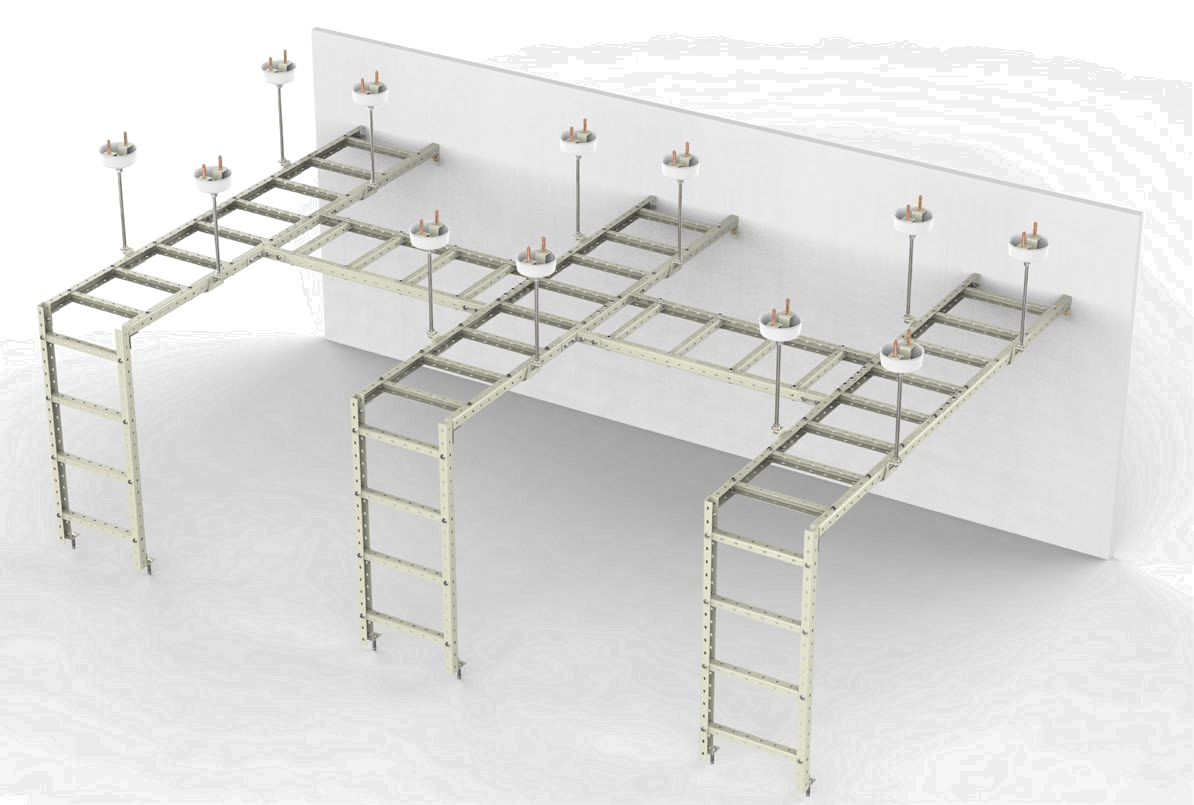

Characteristics of U steel cable tray

The perforated U steel cable tray is a specialized product developed for the computer rooms and stations of telecommunications operators such as China Telecom, China Mobile, China Unicom, China Netcom and China Railcom. It not only serves the purpose of cable management but also supports the weight of all cables. It is an essential engineering tool for the standardized installation of optical cables, Category 5 cables, wires, cables and conduit cables. It complies with the requirements of the Ministry of Information Industry and is a fully open bare frame. The main material is high-quality steel plate, which is surface-coated with plastic or hot-dip galvanized (for outdoor use), featuring large load-bearing capacity, elegant appearance and corrosion resistance.
It is suitable for horizontal, vertical and multi-layer separated cable laying scenarios. The structure is compact, with a large capacity for cable laying. During expansion and subsequent cable laying construction, the "three-line" separation can be easily achieved. The installation dimensions of the cable tray can be flexibly designed and determined by users according to the actual situation of the communication room.

Features of the perforated U-shaped steel cable tray:
1.The width of the cable tray is 200mm - 1000mm.
2.The average load-bearing capacity per meter is over 300 kilograms.
3.Single layer; double layer; triple layer, etc.; and wide upper layer with narrow lower layer.
4.Adjustable joist spacing; typically 250mm - 330mm; suspension spacing 1.5m - 2m.
5. The racks can be assembled on site with standard parts, and they have an attractive appearance.
6.No need for drilling or special tools, which greatly saves labor and construction time.
7. The surface can be powder-coated in various colors; after hot-dip galvanizing, it can be used outdoors reliably and is highly corrosion-resistant.
8.It can be installed on the ceiling, supported on the ground, or used as a ladder.
