Container Data Center

CONTAINER DATA CENTER

Integrated solution for container data center: interface infrastructure, factory prefabrication, rapid deployment, can complete data center construction or capacity expansion in a short period of time. Can be used as an independent disaster recovery site, scalable the data center, suitable for multiple industries and scenarios, and is the best solution for customer data centers.

The interior of the integrated container is containing, battery cabinet, power distribution cabinet, monitoring, fire protection and other equipment and lines. It's pre-integrated and pre-debugged in the factory, reducing the amount of on-site engineering and achieving rapid delivery.

Thermally Isolated Enclosure Thermally Isolated Enclosure
Power Distribution System Power Distribution System
HAC System HAC System
Lighting System Lighting System
Access Control System Access Control System
Intelligent Management Intelligent Management
Cabling System Cabling System
Communication Infrastructure Communication Infrastructure
Fire Protection Fire Protection
Lightning Protection Lightning Protection
NEW SUNPLY NEW SUNPLY
Rapid Deployment
Icon

RAPID DEPLOYMENT

Integrating all subsystems such as power distribution, air conditioning, cabinets, fire protection, wiring, comprehensive wiring, monitoring, etc., the factory completes pre-installation and pre-commissioning, and is plug-and-play. Its installation is simple and requires minimal construction and later transportation time, making it a scalable, floor-standing, low-cost solution for a prefabricated computer room. It can be directly installed on the concrete floor of the building or outdoors, reducing external supporting works.

Energy-Efficient
Icon

ENERGY-EFFICIENT

It adopts a fully enclosed structure, with both inside and out, excellent thermal insulation. This enhances the utilization rate of cooling capacity and reduces energy consumption, and saves a high-efficiency modular power supply, the overall efficiency of the UPS can reach up to 95%.

Intelligent Management
Icon

INTELLIGENT MANAGEMENT

The intelligent power monitoring system enables centralized monitoring of the operating status of various devices, the status of the main power supply, and the environmental temperature. It also has a variety of alarm methods to ensure that the normal operation of the equipment is not affected. The system for the internal power distribution system is a comprehensive monitoring system such as access and light, access control, water leakage, temperature and humidity, etc., which comprehensively improves the reliability and safety of the equipment.

Safe and Reliable
Icon

SAFE AND RELIABLE

The container body has IP55 protection rating and can withstand a maximum load of 200T. It can adapt to complex outdoor environments. The internal key equipment is designed with redundancy, ensuring the stable operation of the equipment for 10-15 years. An ATS external power supply system is equipped. An automatic fire protection system is installed, including sound and light smoke and temperature sensors, temperature sensors and fire sprinklers, which can promptly and effectively detect and control fire. A full safety protection system of video and access control is provided, effectively preventing theft and intrusion, ensuring the safety of the equipment.

REMOTE WEB INTERFACE ACCESS
By directly accessing the monitoring module through the WEB interface, you can conduct remote real-time monitoring of the power distribution system and environmental operation, thereby ensuring the normal operation and safety of the equipment.
Network Topology
SOLUTION RECOMMENDATION

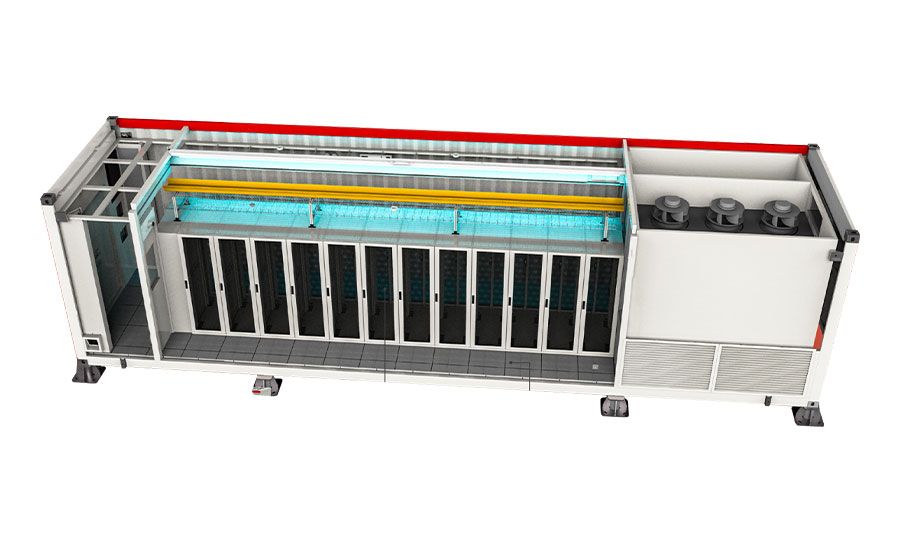

40-FOOT CONTAINER DATA CENTER OPTION 1

......
Option 1
Internal Container Configuration Maximum capacity Qty
Integrated cabinet2000*600*12004
3 Levels Reliable Power Cabinet2000*600*6003
Battery Unit2000*600*12006
Air Conditioning UnitRed-cooled Air Conditioner2
Control UnitIntelligent Power Environment Monitoring1
Fire Protection SystemPerfluorohexanone / Heptafluoropropane1
Enclosure ComponentsEnsured Hot and cold channel, hot and cold1
Cabling UnitStrong and weak current bridge and optical fiber prefabricated optional1
System Communication MethodModbus-RTU/TCP/SNMP1
Protection LevelIP551
Overall Dimensions12192*2438*2896 Customisable/
Weight25000kg/
SOLUTION RECOMMENDATION

40-FOOT CONTAINER DATA CENTER
OPTION 2

......
Option 2
Internal Container Configuration Maximum capacity Qty
Distribution Unit+UPS2000*600*12001
Battery Unit2000*600*12004
IT Cabinet2000*600*120018
Air Conditioning Unit25kw In-Rooled Air flow Air Conditioning4
Control UnitIntelligent Power Environment Monitoring1
Fire Protection SystemPerfluorohexanone / Heptafluoropropane1
Enclosure ComponentsEnsured Hot and cold channel, hot and cold1
Cabling UnitStrong and weak current bridge and optical fiber prefabricated optional1
System Communication MethodModbus-RTU/TCP/SNMP1
Protection LevelIP551
Overall Dimensions12192*2438*2896 Customisable/
Weight25000kg/
SOLUTION RECOMMENDATION

40-FOOT CONTAINER DATA CENTER
OPTION 3

......
Option 3
Internal Container Configuration Maximum capacity Qty
Container40-foot Container Data Center1
Distribution Unit + UPS2000*600*12002
Battery Unit2000*600*12002
IT Cabinet2000*600*120022
Air Conditioning Unit25kw In-Rooled Air flow Air Conditioning6
LVD UnitIP451
Fire Protection SystemPerfluorohexanone / Heptafluoropropane1
Containment EnclosureHot Aisle/Cold Aisle Containment with Thermal1
System Communication MethodModbus-RTU/TCP/SNMP1
Protection LevelIP551
Overall Dimensions12192*2438*2896 Customisable/
Weight5000kg/
SOLUTION RECOMMENDATION

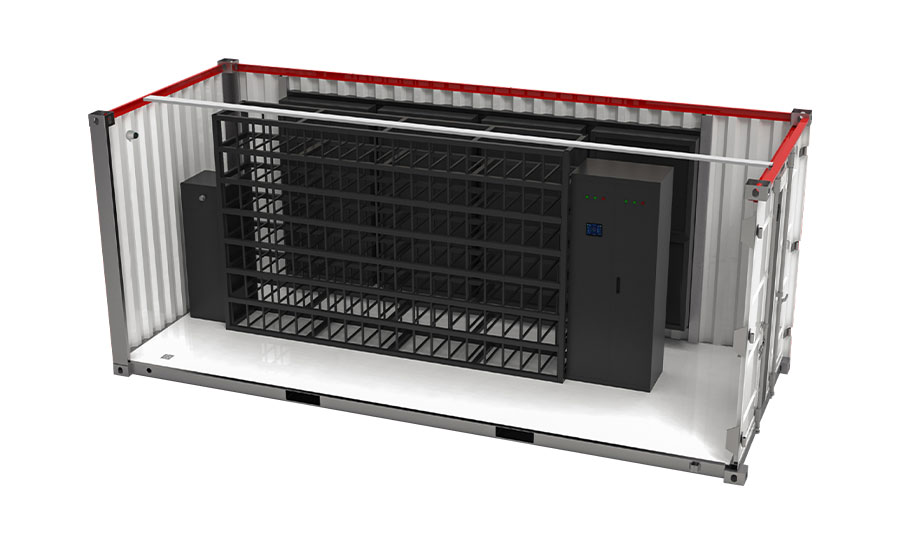

20-FOOT CONTAINER DATA CENTER

......
20-FOOT
Internal Container Configuration Maximum capacity Qty
Container20-foot Container Data Center1
Distribution Unit + UPS1800*300*11001
IT Cabinet1800*600*12005
Air Conditioning Unit7.5kw In-Rooled Air flow Air Conditioning2
LVD UnitIP451
Fire Protection SystemPerfluorohexanone / Heptafluoropropane1
Containment EnclosureHot Aisle/Cold Aisle Containment with Thermal1
System Communication MethodModbus-RTU/TCP/SNMP1
Protection LevelIP551
Overall Dimensions6058*2438*2896 Customisable/
Weight12000kg/
