All-steel ceramic anti-static movable floor

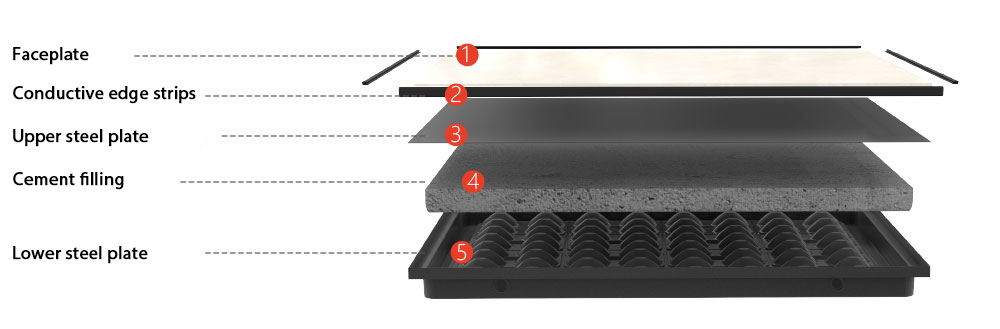

All steel shell structure, high quality international #425 cement filled. National standard anti-static ceramic veneer, the bottom surface is made of deep-drawn drawn steel plate, the surface is made of hard steel plate, and the conductive edge strip "L-shaped" hemming process is adopted around it. The support frame adopts molded riveting structure, the screw adjustment gap is tight, and the height adjustment is fine; The beam is made of standard square pipe galvanized, which has good flatness.

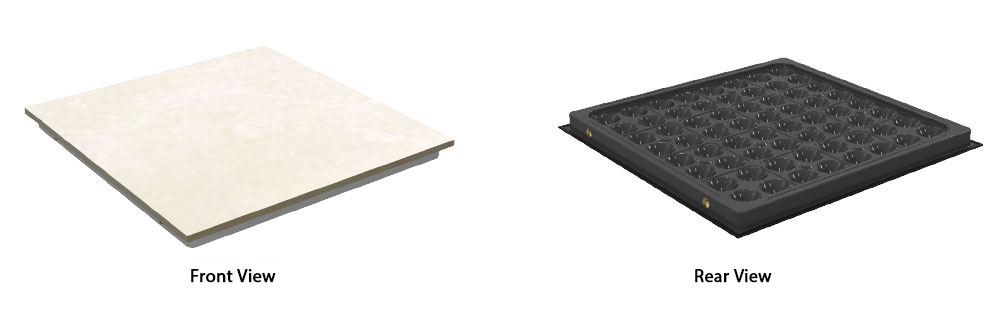

Product

Good Toughness(2)
High Loading Capacity(3)
Impact Resistance(4)
Flat Surface(5)
Tight Seams(6)

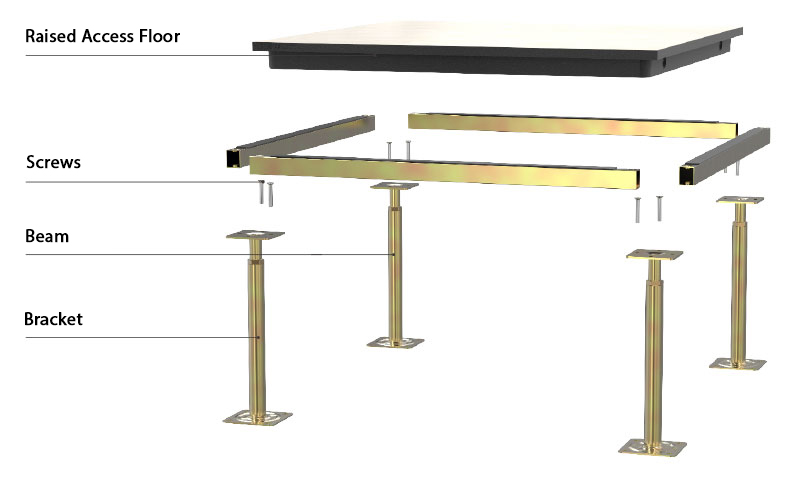

Installation


Technical parameters

Model

Specification (mm)

Concentrate the load

Shock load N

Ultimate load N

Uniform loading N

Rolling load

N Kg 10 Times 10000 Times

SP-T-FS500



602×602×40

602×602×45



≥1960

≥200

≥295

≥5880

≥9720

1958

1566

SP-T-FS700

≥2950

≥301

≥445

≥ 8850

≥ 12500

2964

2356

SP-T-FS800

≥ 3550

≥363

≥536

≥11250

≥16100

3560

2670

SP-T-FS1000

≥4450

≥453

≥670

≥13350

≥ 23000

4450

3560

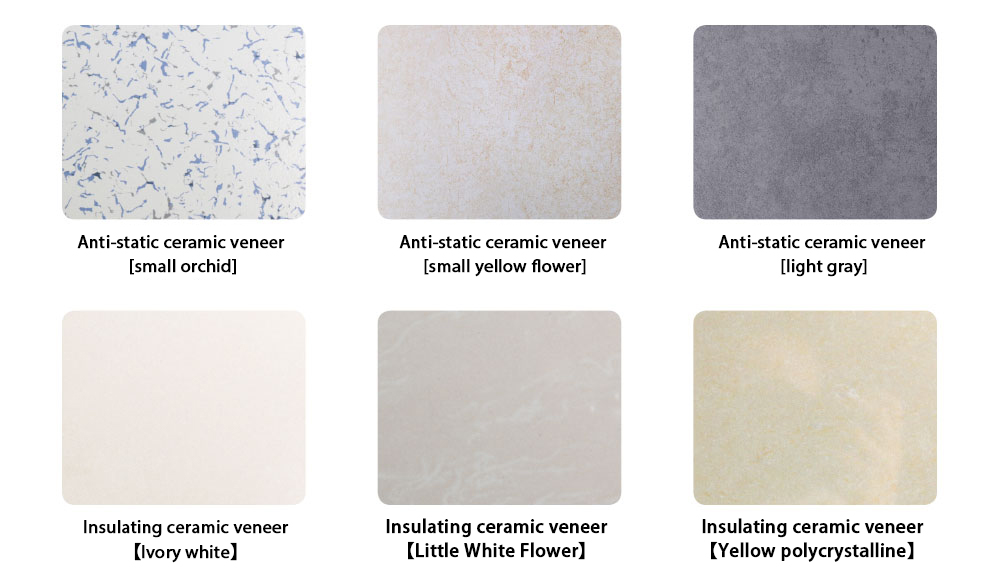

Ceramic veneers
