KC SERIES NETWORK SERVER CABINET CUSTOM

Load-bearing range600KG

Product Standards

Basic Information

Capacity(U)
18/22/27/32/37/42/47
Width(mm)
600/800
Depth(mm)
600/800/1000/1100/1200

ACTUAL THICKN

Verticalmounting Rails1.7(mm)
mounting beam1.7(mm)
Frame1.0(mm)
Front door1.0(mm)
Rear door1.0(mm)
Side panel1.0(mm)

Various sizes and parts are available according to different application demand.
Welded frame, demountable structure design, light duty but sturdy and flexible.
Closed-able cable routing at top and bottom panel, according to project request, customized big cable entrance at bottom is available on demand.
Embedded side panel, tool free in assembling and dismantling,lock is optional.
Front door and rear door can be interchanged quickly without tools, opening angle 180°, convenient for equipments installation and maintenance.
Rotary door handle, keys are universal to front and rear doors for all KA series cabinets.
Providing several copper grounding stud.
Complete accessories.
Provided with adjustable feet, maximum static loading is 500kgs. Plinth is optional in order to fix the cabinet, for bottom cable routing, cooling and anti-rats
Surface treatment procedure is degreasing-->pickling-->antirust and phosphorization-->water cleaning-->powder coating,
RoHS compliant.

Cabinet door style


  • A

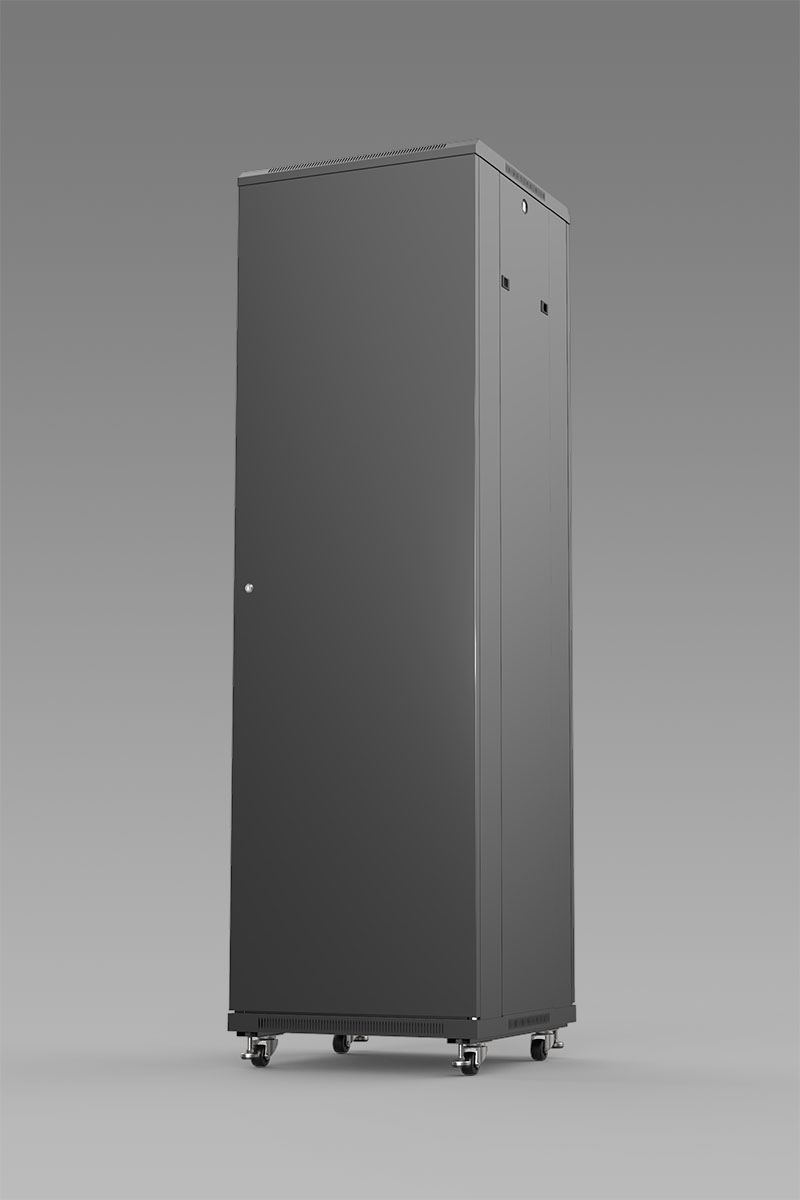

    All-steel doors


  • B

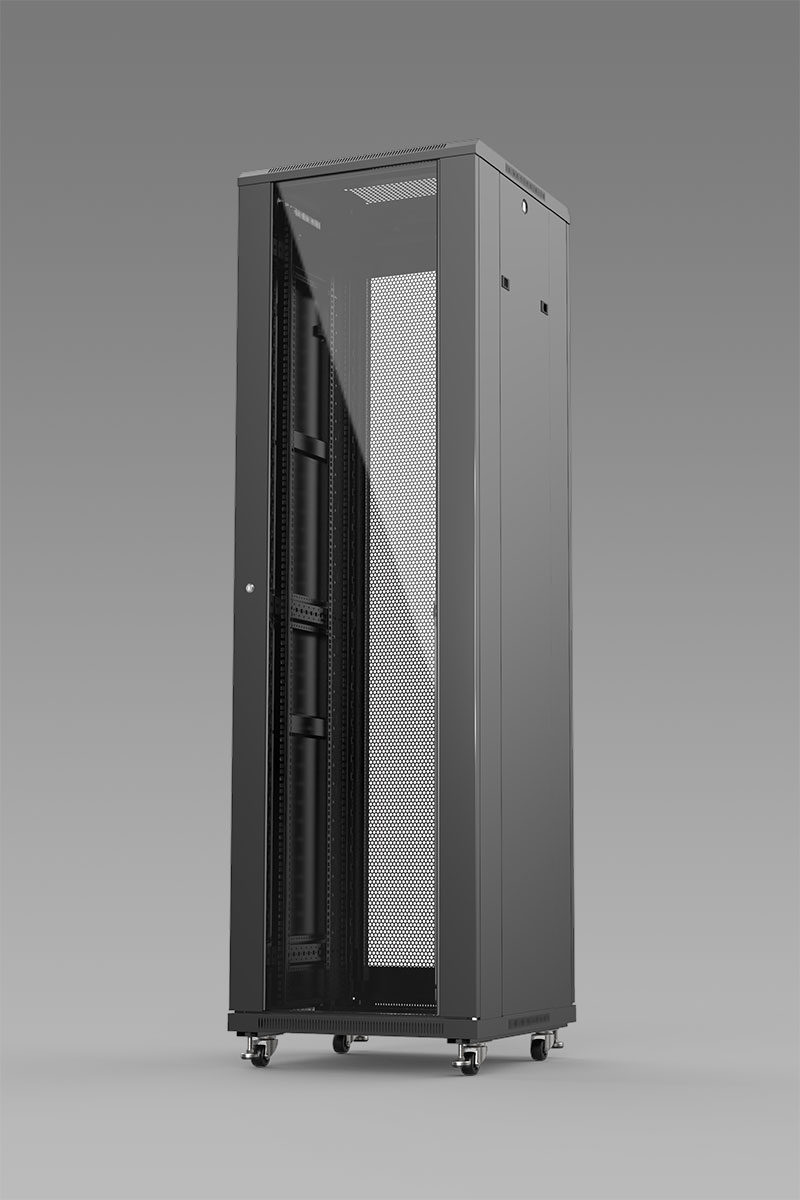

    Glass doors


  • C

    Waist glass door


  • D

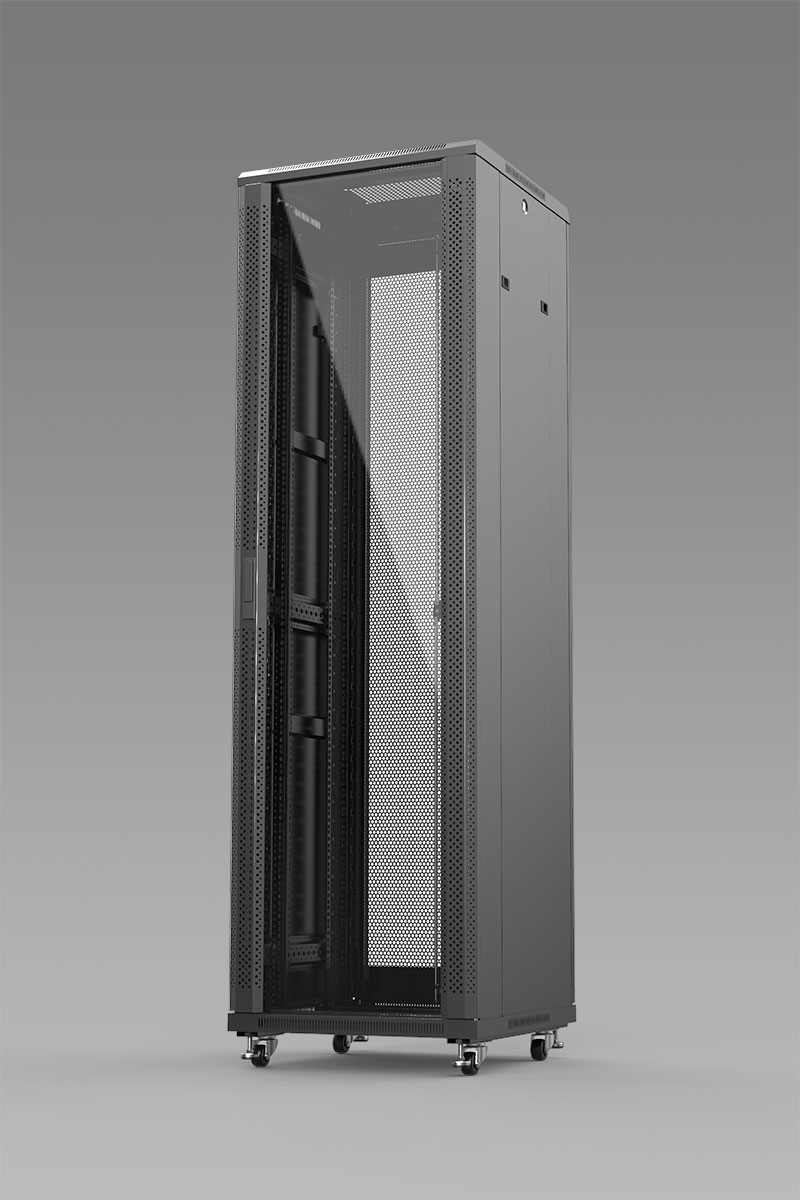

    Round hole glass door


  • E

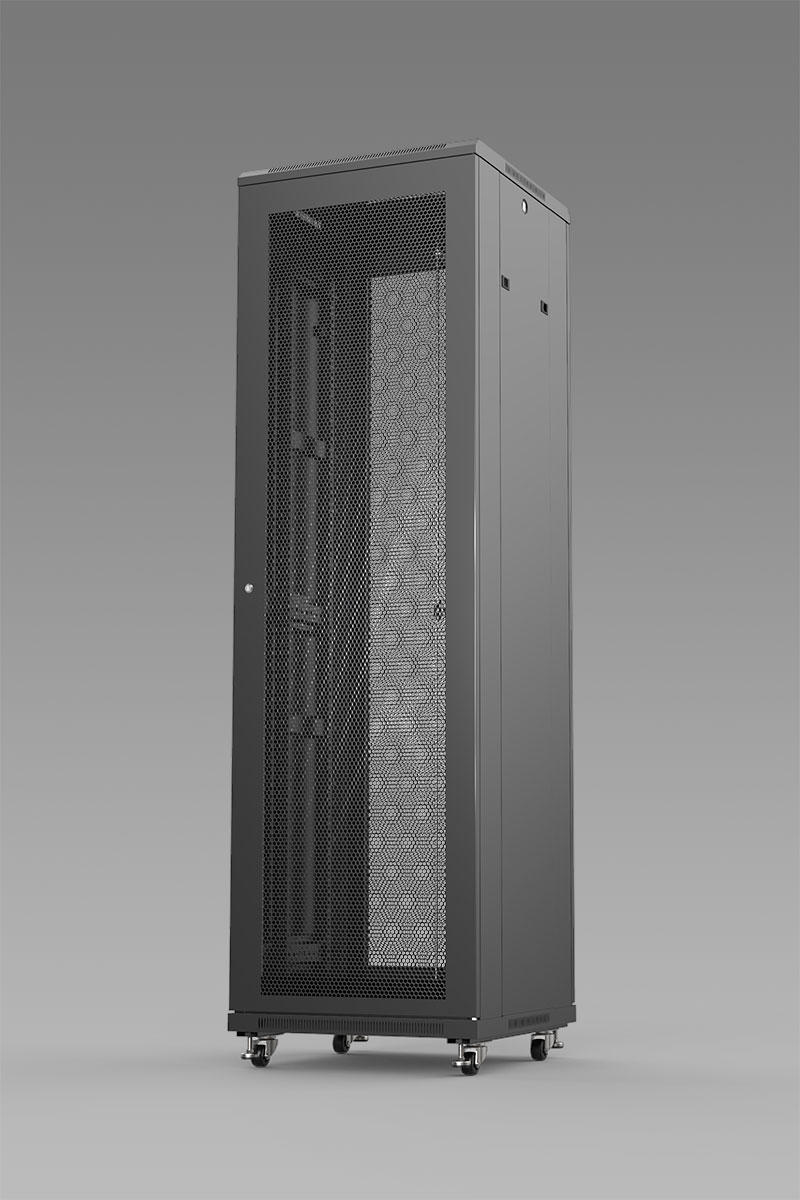

    Mesh doors


  • F

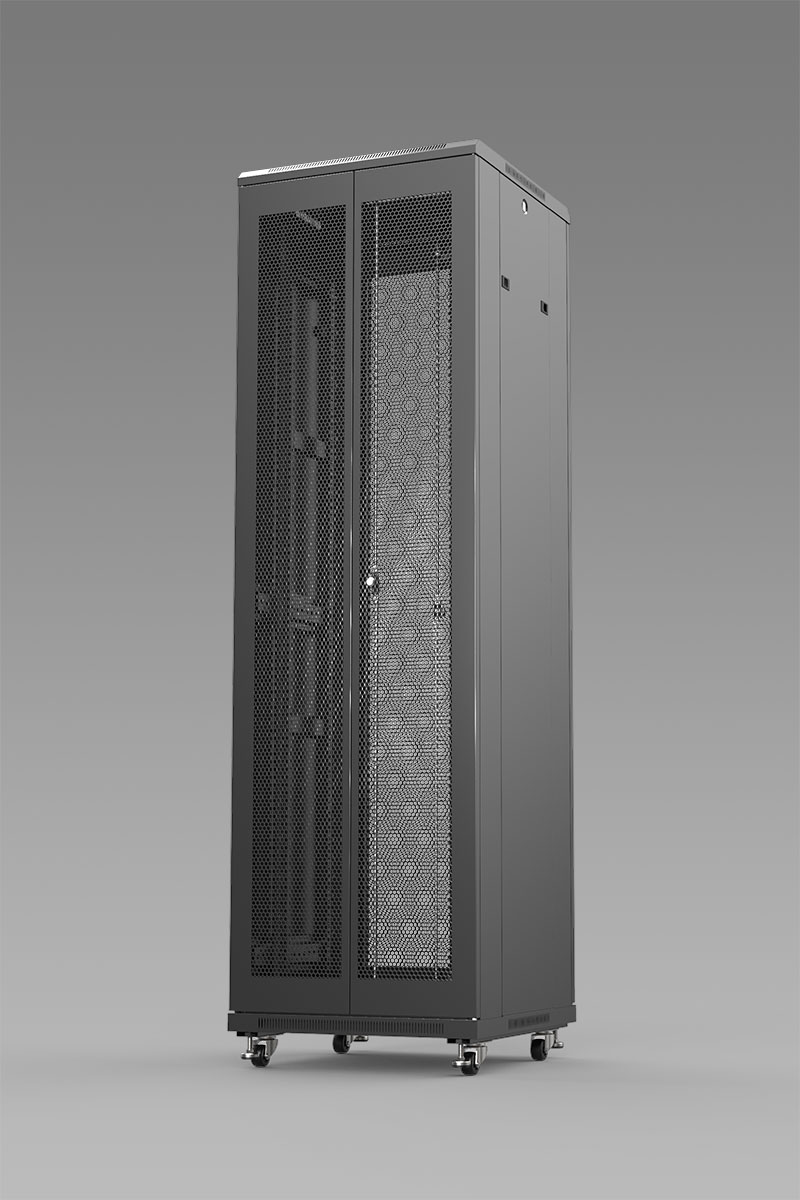

    Double opening mesh door

product details
