KX SERIES WALL MOUNTING CABINETS CUSTOM

Load-bearing range80KG

Product Standards

Basic Information

Capacity(U)
6/9/12/15/18/22/
Width(mm)
600
Depth(mm)
450/600/

ACTUAL THICKN

Top panel1.4(mm)
Bottom panel1.4(mm)
Frame1.4(mm)
mounting beam1.4(mm)
Vertical mounting rails1.7(mm)
Side panel1.0(mm)

Various sizes and parts are available according to different application demand.
Completely welded structure, firm and reliable.
Cable in/out access at the top, bottom and rear for convenient cabling on site.
Embedded side panel, tool free in assembling and dismantling, lock is optional.
Front door can be dismantled and change from right to left quickly without tools, opening angle 180°, convenient for equipments installation and maintenance.
Providing several copper grounding stud.
Castor or adjustable feet is optional for fix to the ground.
Maximum static loading is 60kgs.
Provided with adjustable feet, maximum static loading is 500kgs. Plinth is optional in order to fix the cabinet, for bottom cable routing, cooling and anti-rats
Surface treatment procedure is degreasing-->pickling-->anti-rust and phosphorization-->water cleaning-->powder coating, RoHS compliant.

Cabinet door style


  • A

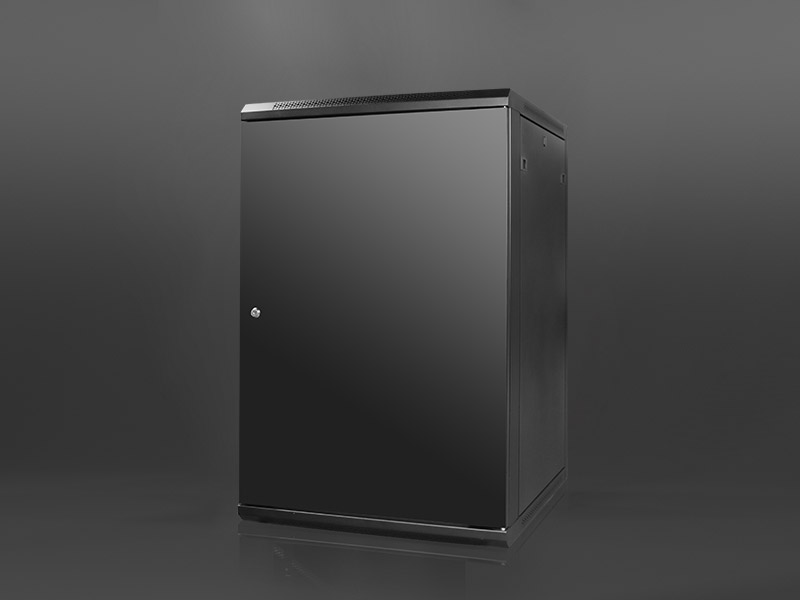

    Steel door


  • B

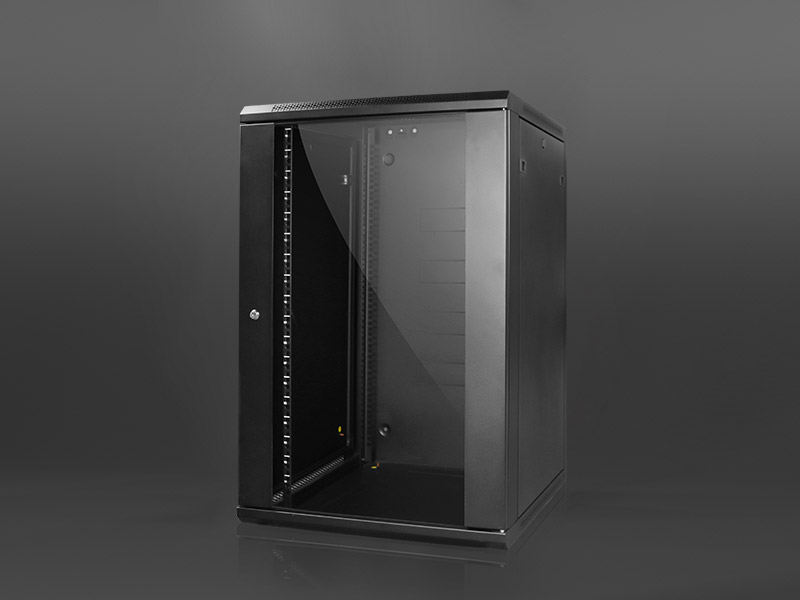

    Glass door with fiame


  • C

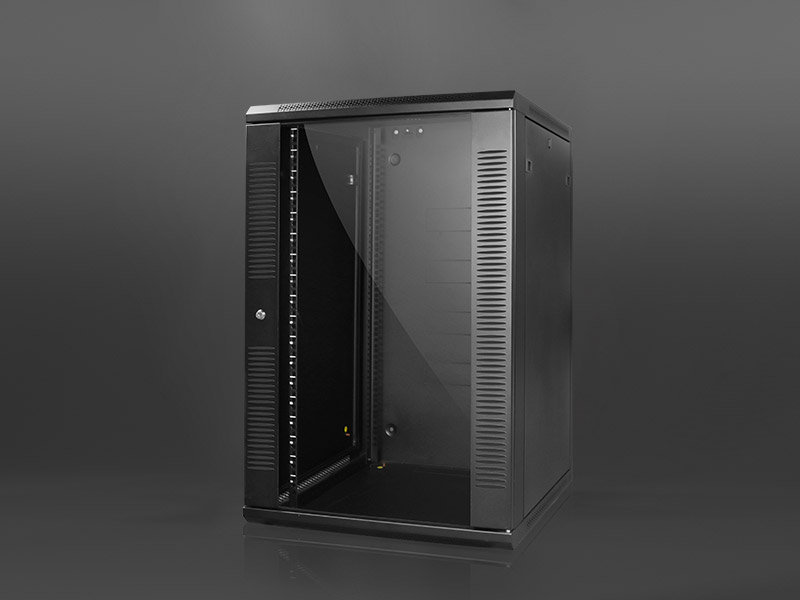

    Glass door with fiame with ellipse hole


  • D

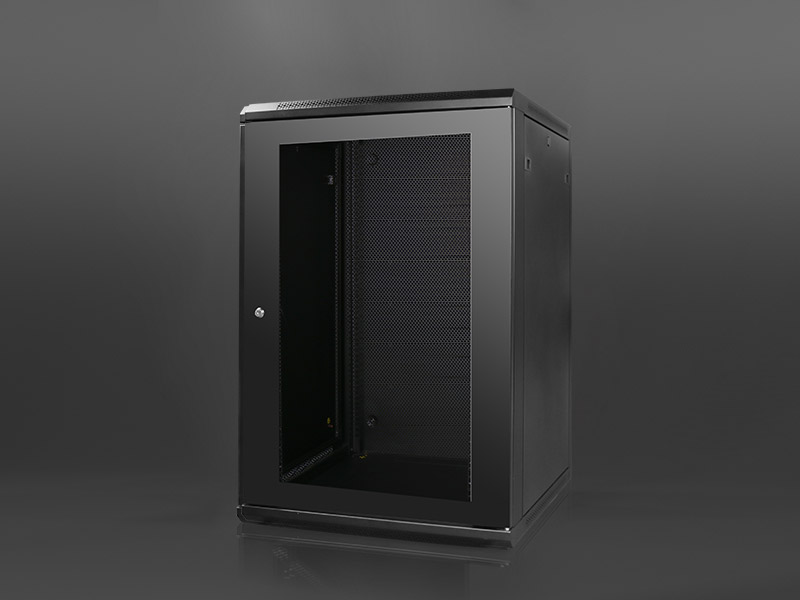

    Perforated door with hex hole

Standard components

product details
