Integration Smart Cabinets

Rack-type data centerDCB SERIES

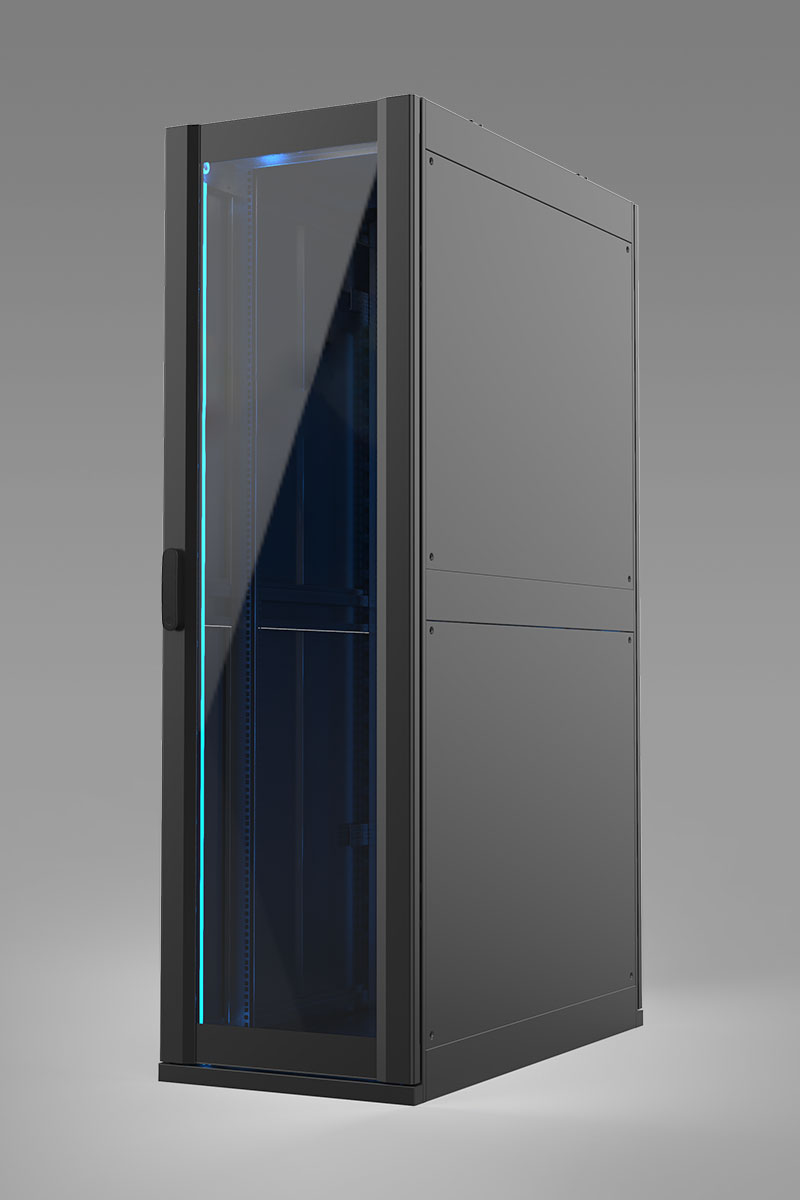

DCB-1 Basic cabinet

  • All-in-one designThe factory can integrate prefabrication, pre-assembly and pre-commissioning, and the construction can be completed quickly on site
  • Overall design deliveryOverall design, overall delivery, avoiding system design problems
  • Self-contained complete systemA single cabinet is a complete system of its own, which can be easily and quickly expanded to place multiple cabinets side by side
  • Mood light tipsDifferent colors of ambient lighting reflect the internal temperature and humidity environment or safety status
  • Hot and cold aisleThe hot and cold aisle is fully enclosed to improve cooling efficiency
  • Emergency heat dissipationFront and rear with emergency fan heat fans to delay channel overheating

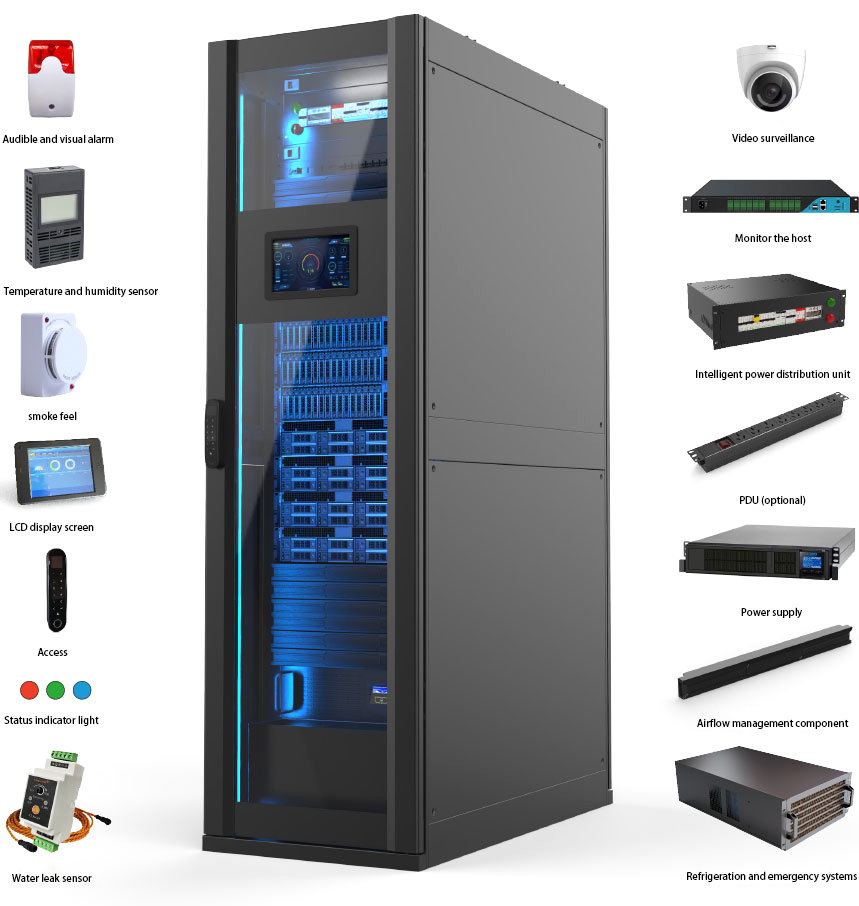

    Remote Web Interface Access

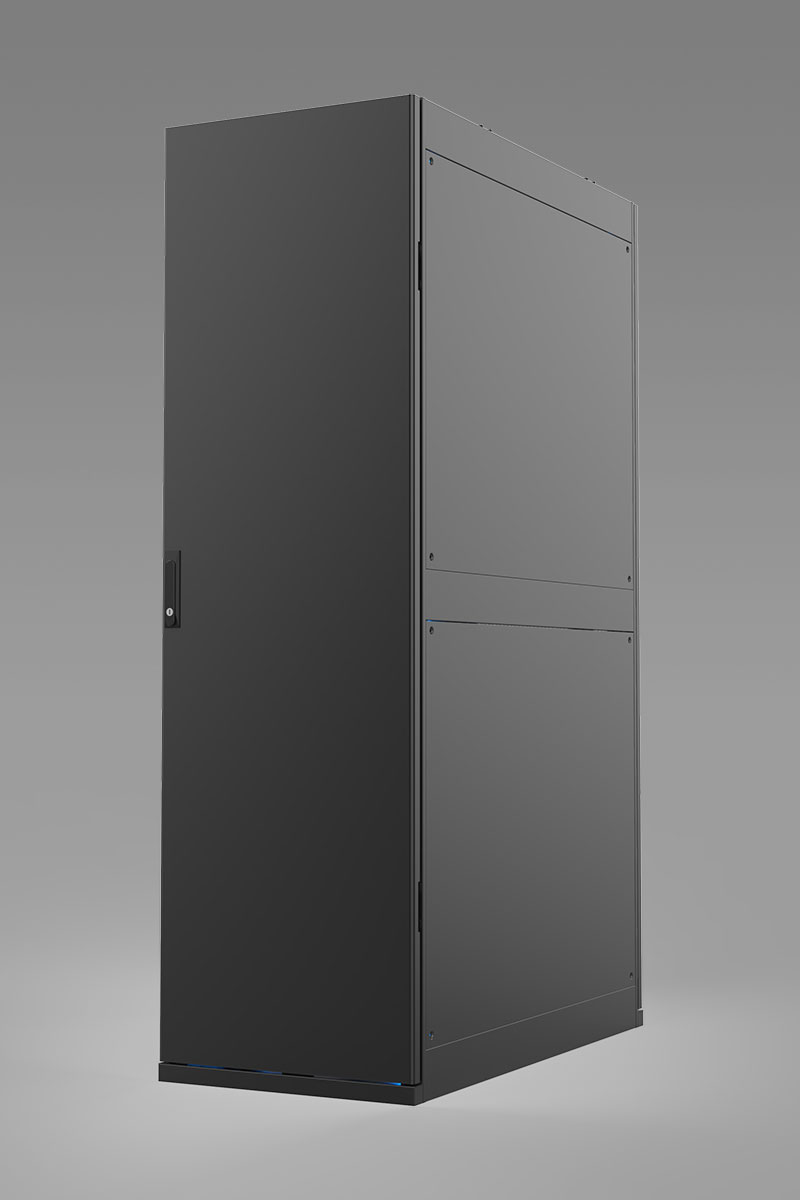

    DCB-2·ITEquipment cabinet

    MaterialHigh quality cold rolled steel
    ColorBlack
    Protection levelIP20
    Bearing1800kg

    • Front

      Front view


    • Bback

      Rear view

    Width(mm)
    600
    Ddepth(mm)
    1200
    Height(mm)
    2000

    Configure the manifest

    Specification Integrated Rack   X1 Integrated Rack   X1
    IT Rack X1    		 Integrated Rack   X1
    IT Rack X2    		 Integrated Rack   X1
    IT Rack X3
    Item No. DCA/B-16220-10403 DCA/B-26220-10403 DCA/B-26220-10406 DCA/B-36220-10406 DCA/B-26220-20810 DCA/B-46220-20810 DCA/B-46220-21215
    Rack System Rack Quantity 1 2 2 3 3 4 4
    Expansion Method All racks can be installed side by side, and the racks at both ends are equipped with side panels
    Configurable Power 2.4KW 2.4KW 4.8KW 4.8KW 8KW 8KW 12KW
    Rack System Size 600*1200*2000mm 1200*1200*2000mm 1800*1200*2000mm 2400*1200*2000mm
    Rack Front Door DCA: A single piece of steel is cut out for installation of monitoring screens and tempered glass;
    DCB: A whole piece of tempered glass with openings for the installation of the monitoring screen, with metal plate decoration on both sides
    Rear Door Standard configuration: Steel plate door; dual-open steel door or dual-open mesh door for optional
    Rack Lock Standard configuration: mechanical lock; Electrical lock and smart lock for optional
    Rack wheel&feet No configuration; Rack wheel&feet for optional
    LED Light There are three primary colors of red, green and blue RGB variable atmosphere lights on both sides of the front of the rack, and the top lighting of the rack is automatically switched after the door is opened.
    Powe Distribution System Input AC220V AC380V
    Input Master Switch 63A/2P 63A/2P 63A/2P 63A/2P 63A/2P 63A/2P 40A/4P
    Lightning protection level 20KA/2P 20KA/2P 20KA/2P 20KA/2P 20KA/2P 20KA/2P 20KA/4P

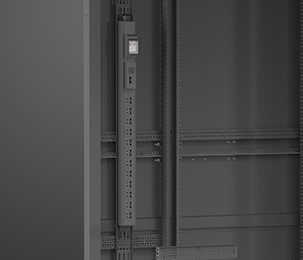

    PDU Input current: 32A; output: 10-digit GB 10A+4-digit GB 16A; with junction box (For optional)
    Air Conditioning System Cooling Capacity 3.5KW 7KW 12.5KW
    Emergency Settings Front and rear top emergency ventilation system, (automatic pop-up door device can be selected with access control)
    Wind Circulation The wind comes first; the return wind comes after
    UPS UPS Capacity 3KVA 6KVA 10KVA 15KVA
    Input Voltage AC220V AC380V
    Input Wiring Single in and single out 3P+N wire + ground wire
    Battery Capacity 72V*9AH 192V*7AH 192V*9AH External battery, for optional
    Backup time 5-10 minutes for full load
    Battery Installation UPS built-in battery
    Dynamic Environmental Monitoring System Monitor Host 5*485 ports, 2*232 ports, 2*network ports, 128M memory, 4G storage, 12*DI, 4*DO
    Monitoring Screens Android tablet, 10.1" touch screen, 1280*800
    Web Access Web remote monitoring access function avaliable
    Temperature&Humidity Sensor Same as number of racks
    Smoke Sensor Same as number of racks
    Water Immersion Sensor Same as number of Air Condition
    Video Surveillance No configuration; Video surveillance for optional
    SMS Alarm No configuration; SMS Alarm for optional
    APP No configuration; APP for optional
    Fire Fighting System Aerosol Fire Extinguishing Device No configuration; Aerosol fire extinguishing device for optional
