Large span ladder cable tray series

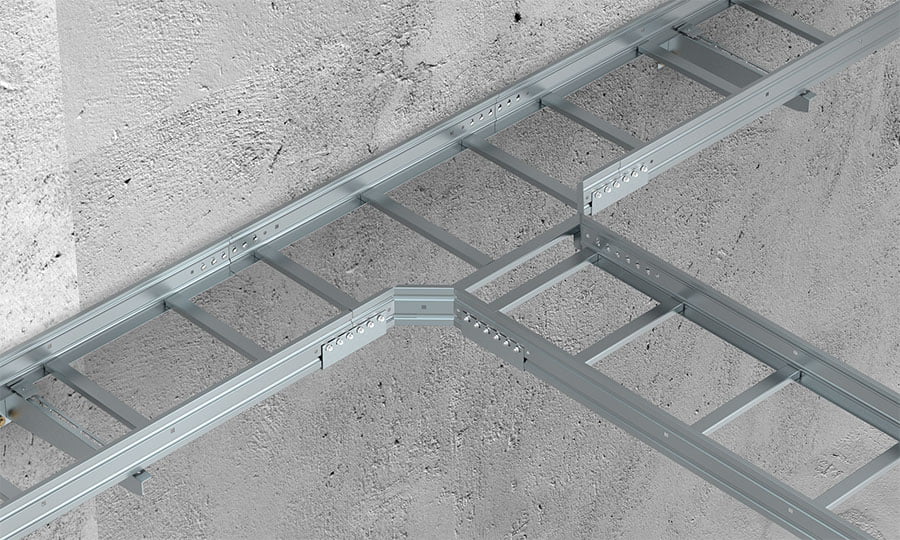

On the side facades of the bridge on both sides, there is a design of stamped diamond-shaped stretched convex edges. Beautiful appearance, greatly increased load capacity. The cable can be well fixed, suitable for the laying of high and low voltage power cables with large diameters. Low cost, unique shape, easy installation, heat dissipation, good breathability and other advantages.

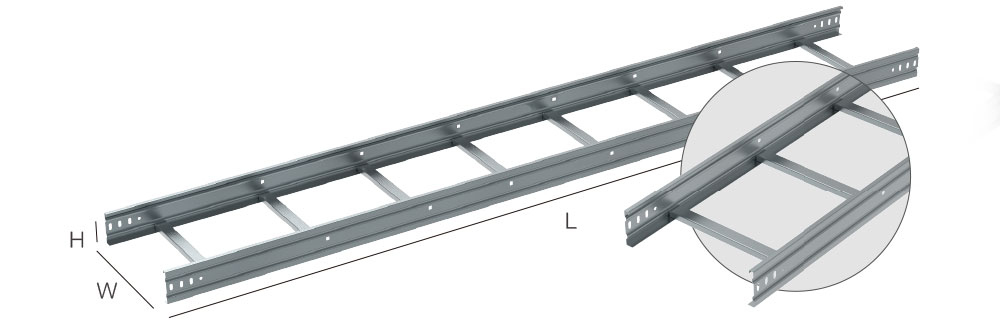

Basic information

Plate thickness(mm)
0.8/1.0/1.2/1.5/1.8/2.0
Length(mm)
2000/3000
Height(mm)
50/100/150/200
Width(mm)
200/300/400/450/
500/600/800

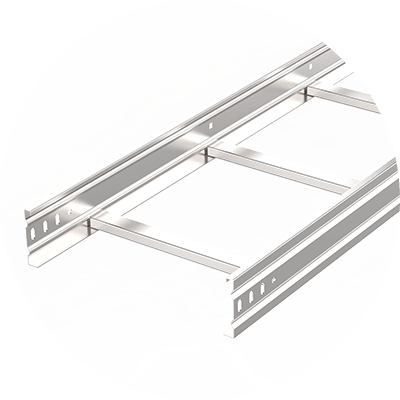

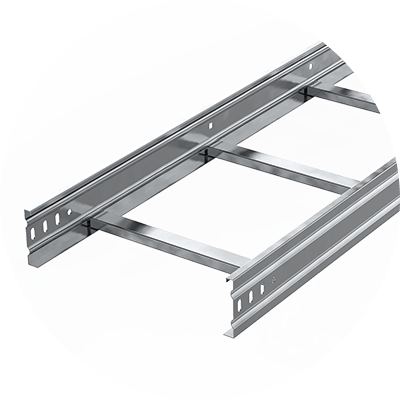

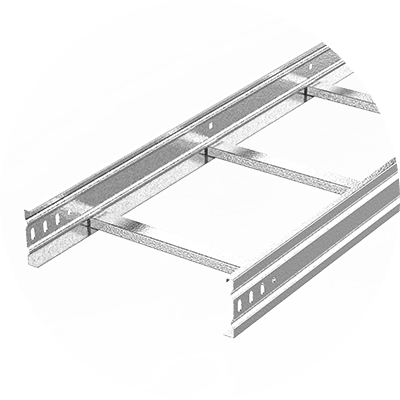

Surface treatment

Application scenarios

Product accessories

  • Ladder bridge horizontal 90° elbow

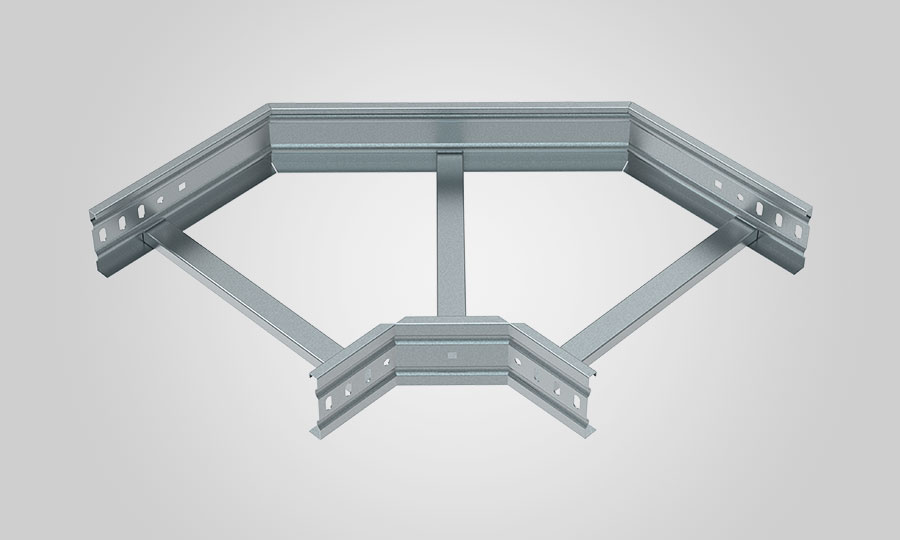

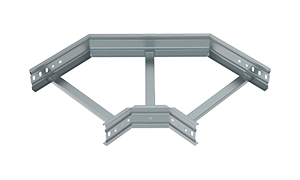

    Horizontal 90° elbow

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo

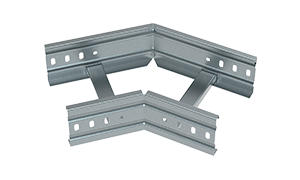

  • Horizontal 135° elbow of the ladder bridge

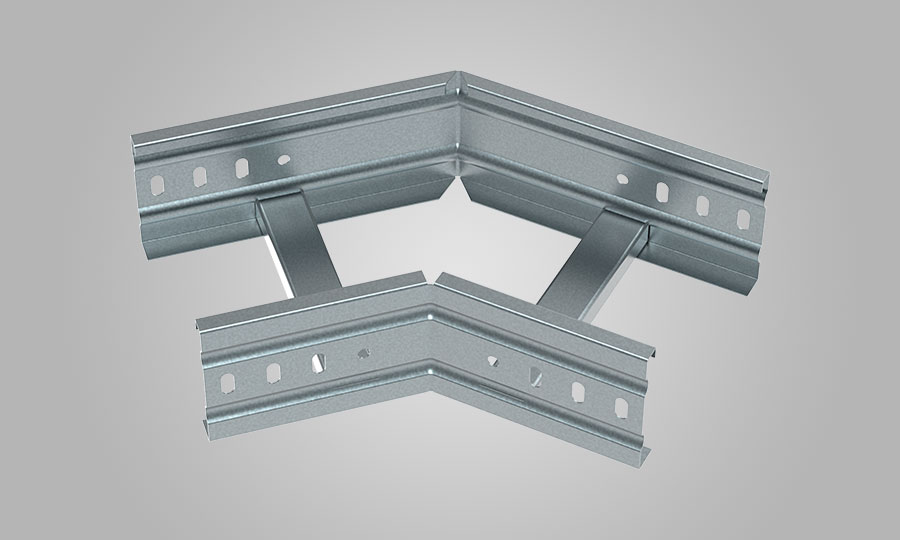

    Horizontal 135° elbow

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo

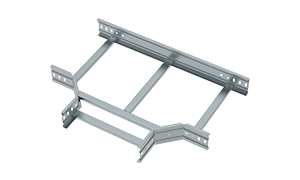

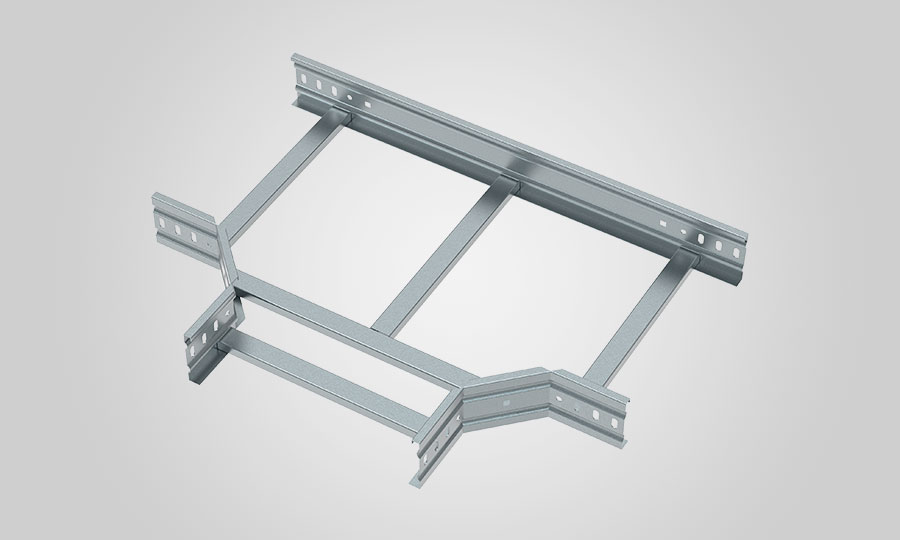

  • Ladder bridge horizontal tee

    Horizontal tee

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo

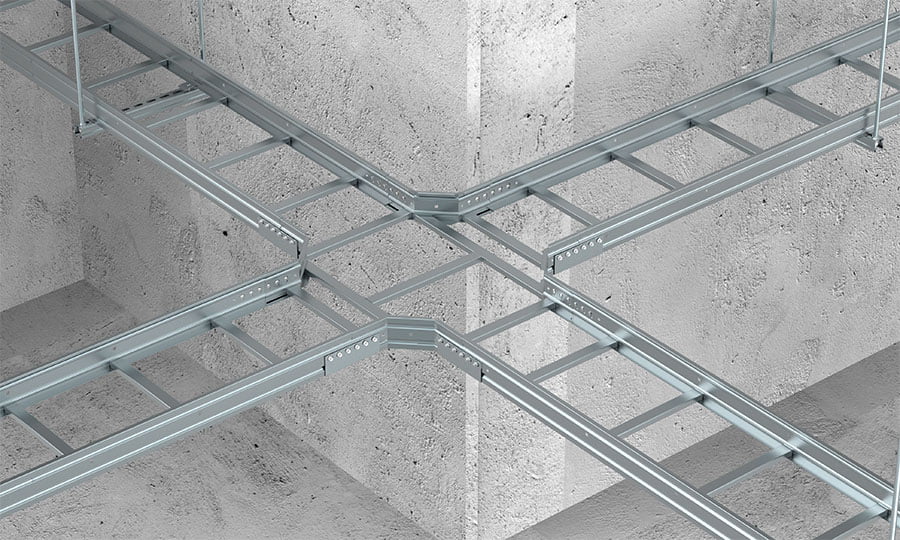

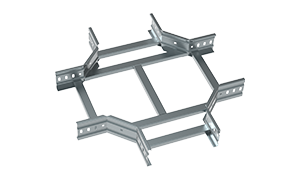

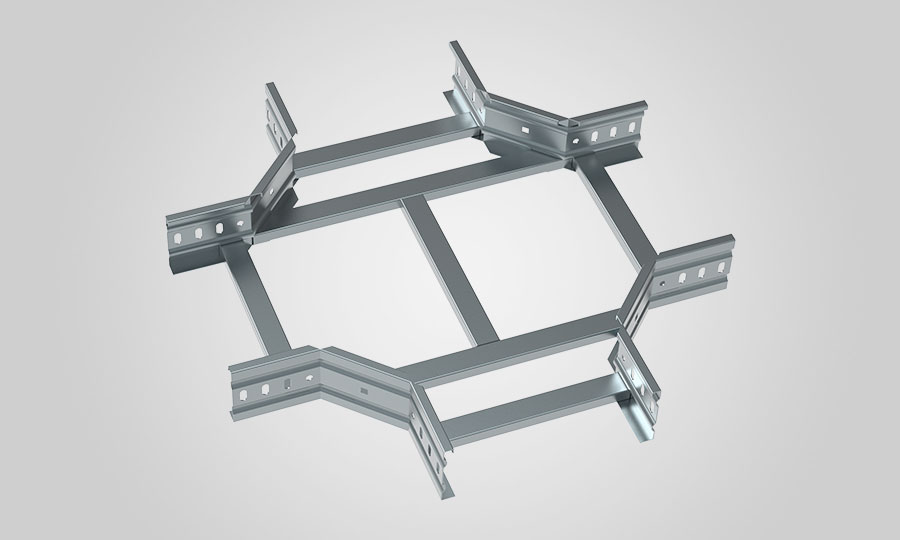

  • The ladder bridge is horizontal and four-way

    Horizontal tee

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo

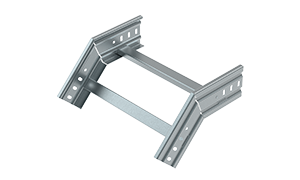

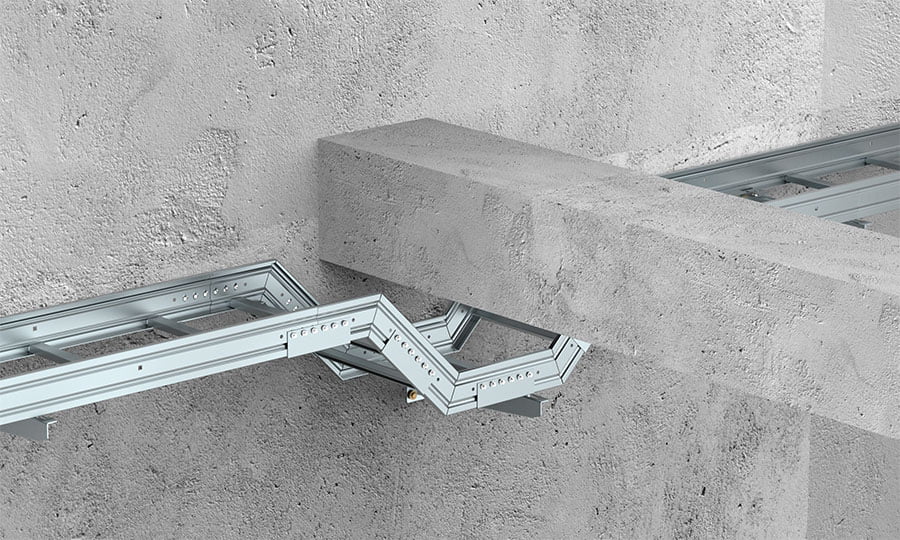

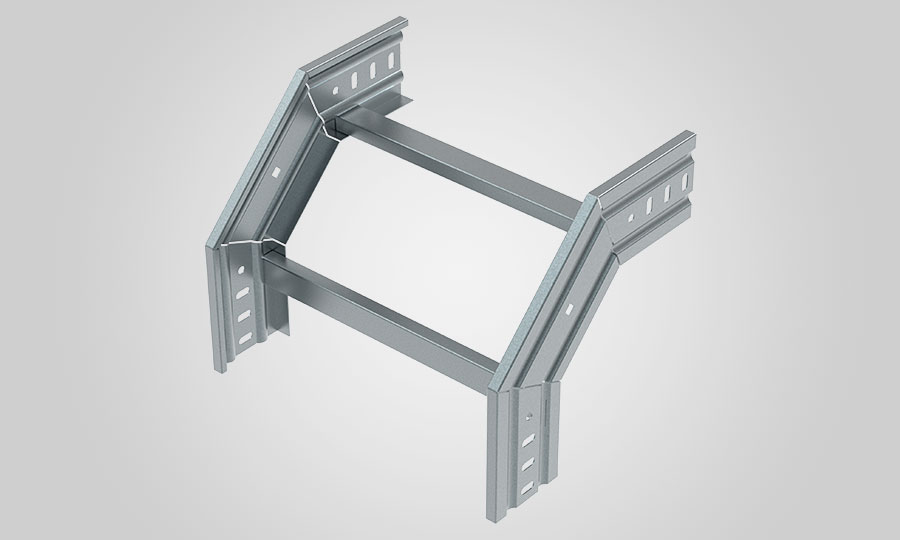

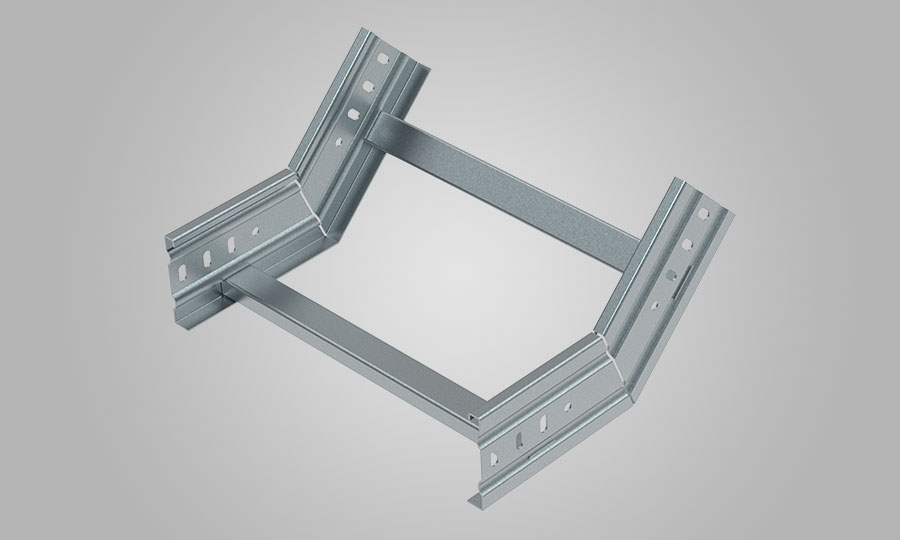

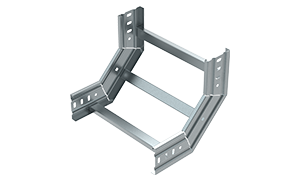

  • The ladder bridge is bent upward at 45°

    Bend upward at 45°

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo

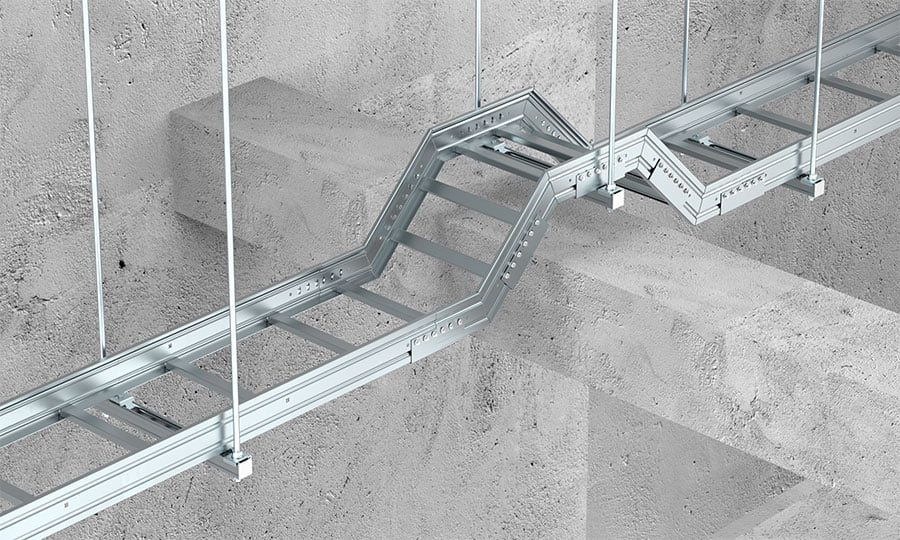

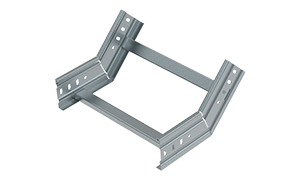

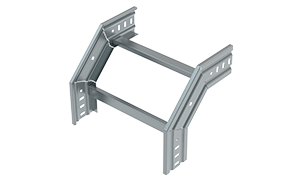

  • The ladder bridge bends down at 45°

    Bend down at 45°

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo
  • Vertical tee on the ladder bridge

    Bend 90° upward

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo
  • Vertical tee under the ladder bridge

    Bend 90° downward

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo
