Six bread galvanized steel calcium sulfate network raised floor

Six bread galvanized steel sheet, good sealing performance, waterproof; High dimensional accuracy, super load-bearing and pressure-resistant; The height of the bracket can be adjusted, the assembly is flexible, the amount of wiring is large, the interchangeability is good, and the surface can be laid with various films, which is beautiful and generous; Light weight, super bearing pressure; High reuse rate, easy disassembly and assembly, cost saving, long service life. Widely used in various computer rooms, communication rooms, control rooms, power rooms, high-level office buildings。

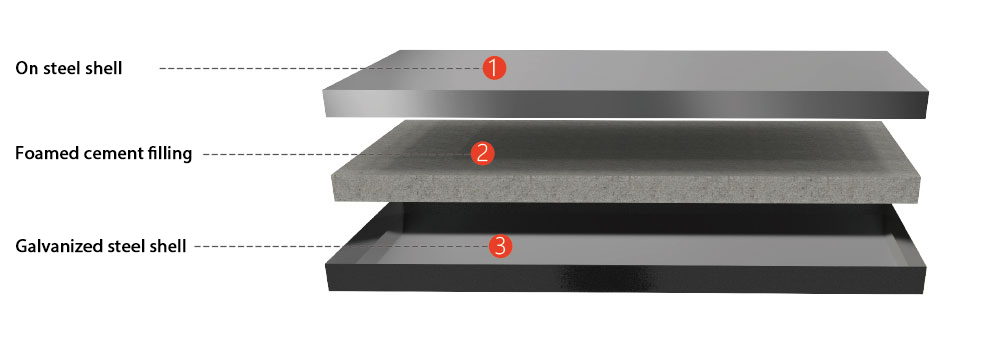

Product structure

Super load-bearing(1)
Beautiful and generous(2)
Sealed and waterproof(3)
The stand is adjustable(4)
Light weight(5)
Easy to disassemble and assemble(6)

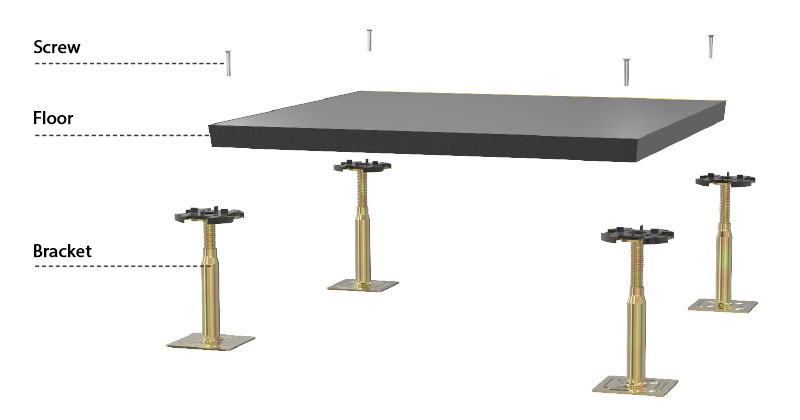

Installation structure

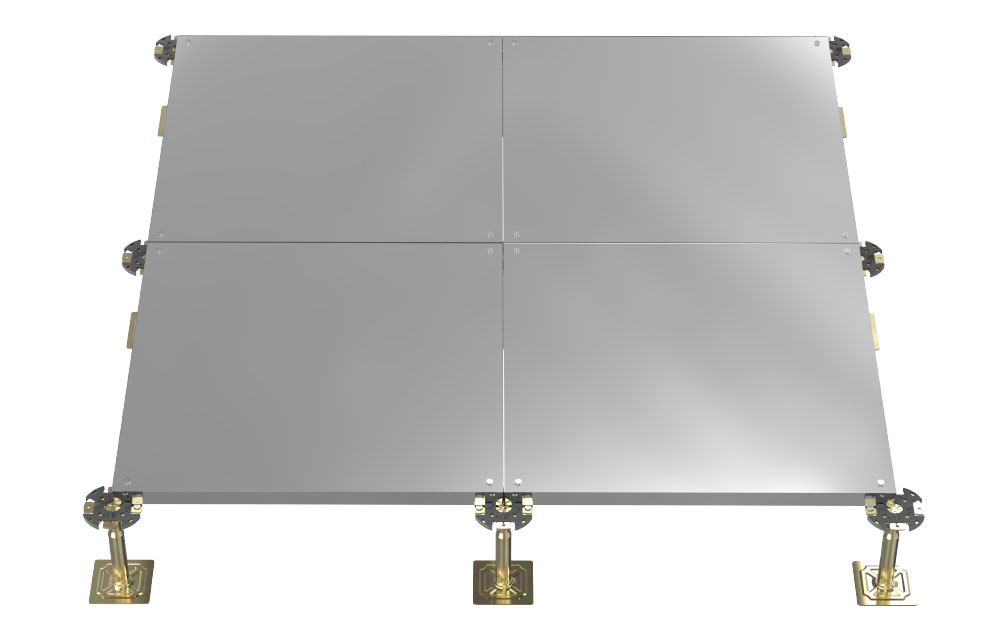

Product images

Technical parameters



Model

Specification (mm)

Concentrate the load

Shock load N

Ultimate load N

Uniform loading N

Rolling load

N Kg 10  Times 10000  Times

SP-SL-FS1000

600×600×31

≥4450

≥453

≥670

≥ 13350

≥ 23000

4450

3560

SP-SL-FS1250

600×600×39

≥ 5560

≥567

≥780

≥ 16680

≥ 33000

5560

4450
