Prefabricated Data Center Skid Solution

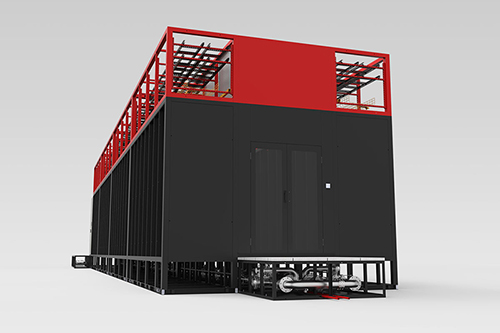

Integrated System Prefabrication Manufacturing SolutionPrefabricated Liquid-Cooled Data Center


Efficient Customization	Prefabricated Modular	High efficiency and energy saving	Easy to Install

This solution is a liquid cooling solution. The server is a liquid-cooled server, eliminating the need for air conditioning to cool it down. This significantly reduces energy consumption and lowers the PUE.

At the same time, since the cooling method of liquid cooling directly enters the server, it can more effectively lower the server temperature and thus be adapted to servers with higher power.

Increasing the configuration and number of servers can meet higher business demands.

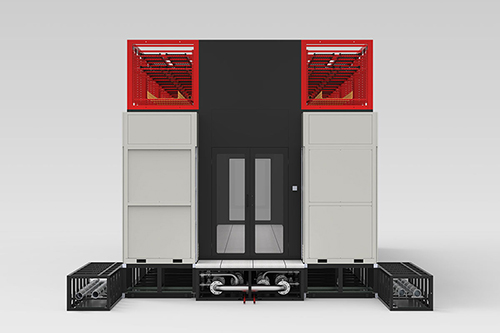

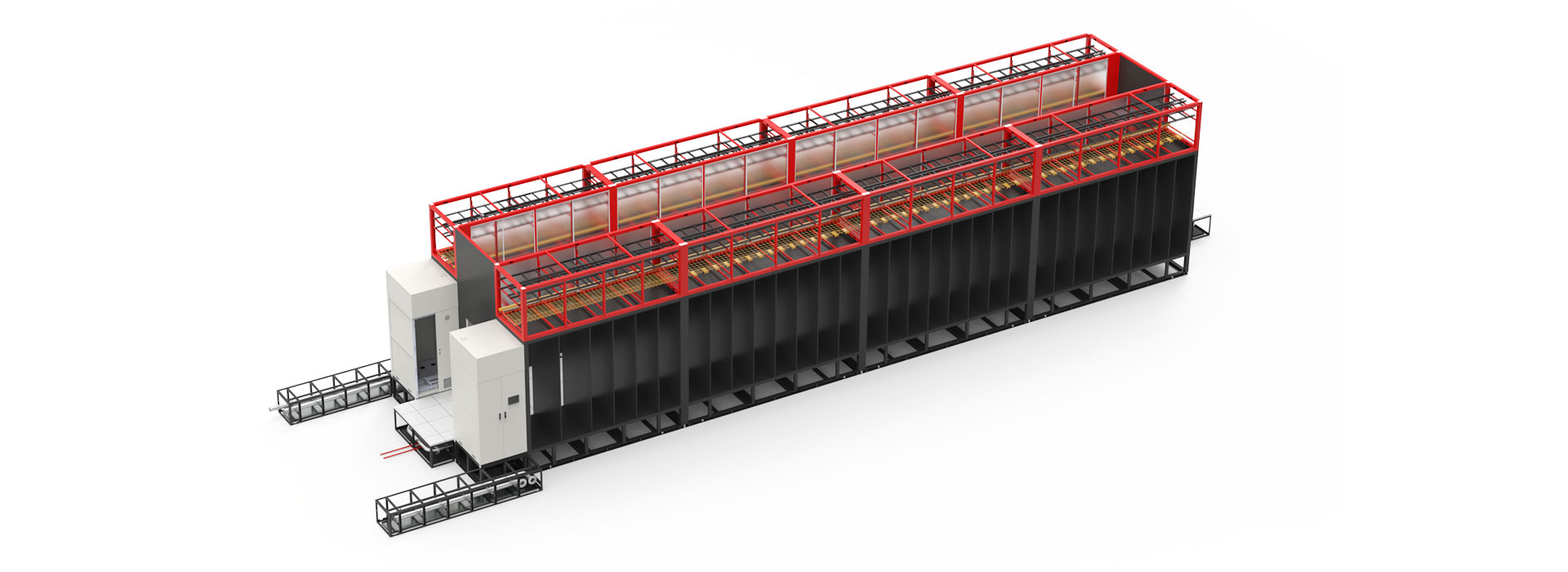

Single-Row Channel Display

1The containment is productized, assembled on-site with multiple modules, and the overall structure is fully prefabricated with optimized design. Carry out refined and optimized layout in combination with the actual purchased dimensions of the equipment.
2Each module is prefabricated in the factory, reducing the on-site construction workload and shortening the delivery time. At the same time, a large number of technical connections are completed in the factory, reducing on-site technical connection problems and greatly improving on-site efficiency.
3Under the premise of meeting the maintenance space requirements, save the space for pipelines and equipment, standardize raw materials, and use rectangular tubes as the main frame to reduce the cost of material procurement.

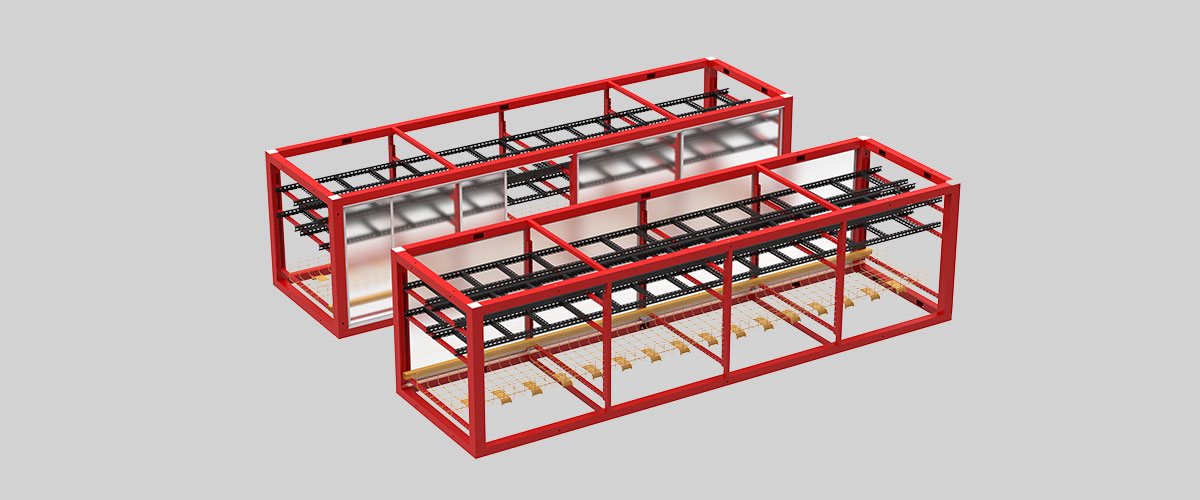

Cable Tray Frame Skid

The Cable tray frame skid integrates a hot aisle containment component with an internal multi-layer bridge frame design. The main structure of the closed component ingeniously combines an 8mm polycarbonate sheet with a sturdy aluminum profile frame.

1Not only does it effectively isolate the cold and hot aisle containment, but it also ingeniously serves as a maintenance window, facilitating the maintenance and management of the intricate strong and weak current cables on the cable tray.
2The cable tray section is divided into strong current trapezoidal cable trays and weak current wire mesh cable trays. Each performs its own duties and jointly bears the task of cable laying.
3The specific size and quantity configuration can be flexibly adjusted according to the requirements of the actual application scenario to meet the installation and usage requirements.

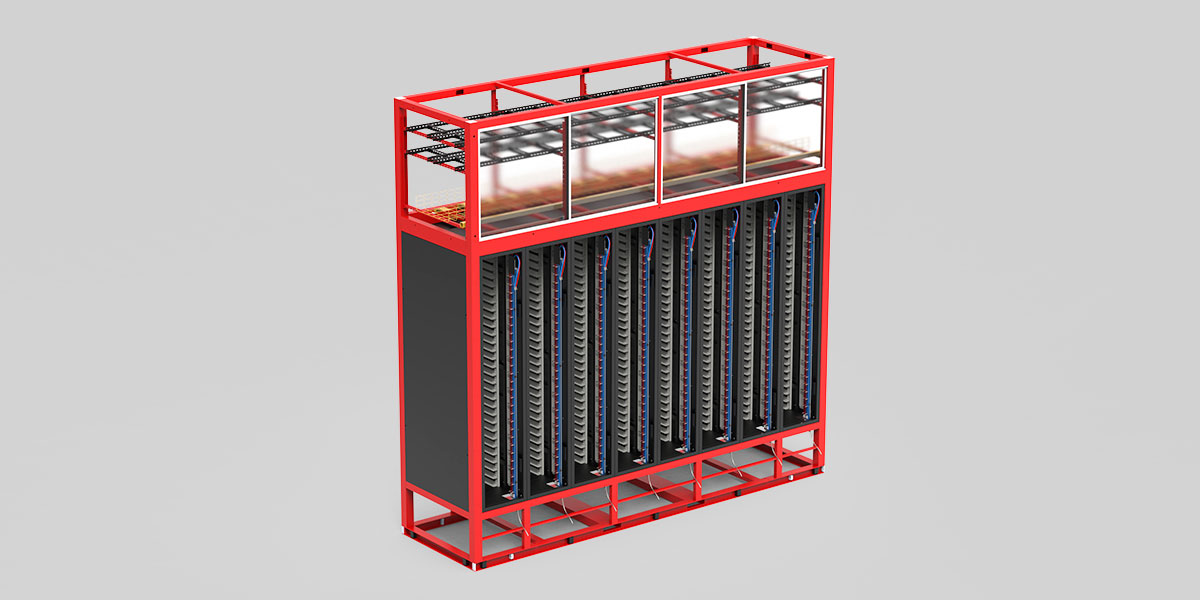

IT Skid

The IT skid and the cable tray frame skid achieve the prefabricated centralized deployment and installation of the cabinet equipment by integrating the server cabinet and the cable tray frame into their respective skid frames respectively.
