Large span cable tray series

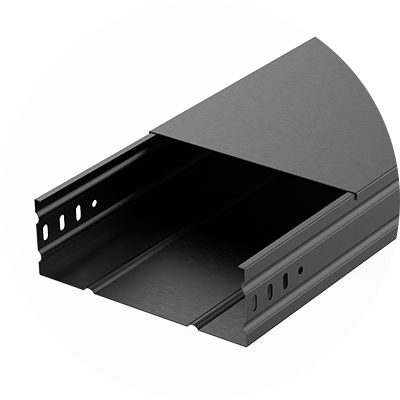

The side façade and bottom surface of the bridge on both sides of the bridge have arc-shaped stiffeners that have been rolled into shape, and the main bearing part of the cable tray has high strength, beautiful shape, simple structure and easy installation. It is suitable for laying scenarios with relatively large span requirements, and tries laying control cables for computers, communication cables, thermocouples and other sensitive systems.

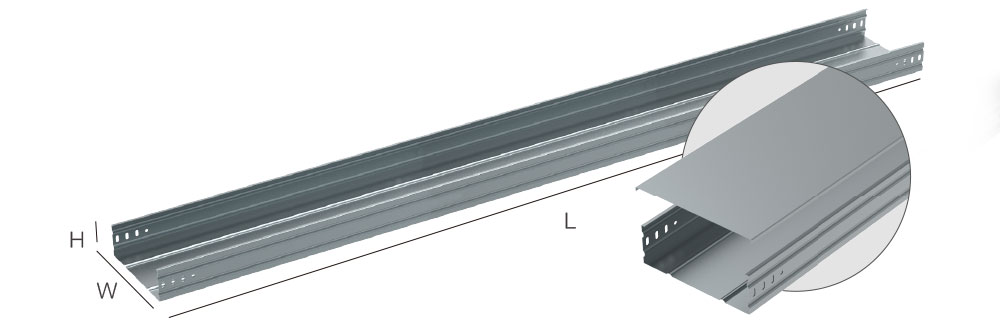

Basic information

Plate thickness(mm)
0.8/1.0/1.2/1.5/1.8/2.0
Length(mm)
2000/3000
Height(mm)
50/100/150/200
Width(mm)
50/100/150/200/300
400/450/500/600/800

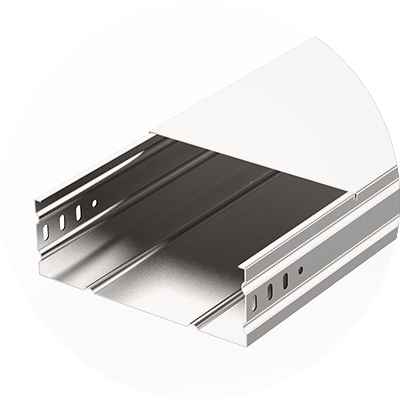

Surface treatment

Application scenarios

Product accessories

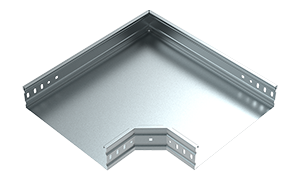

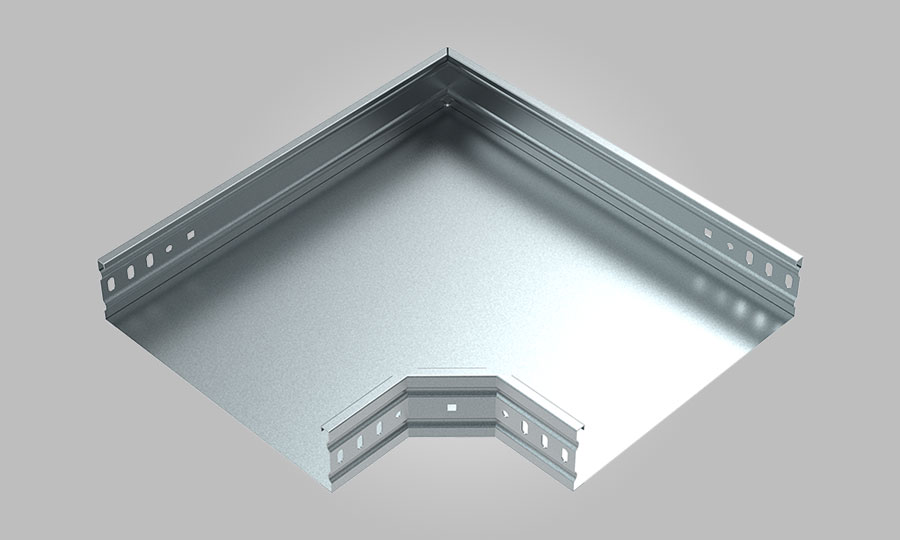

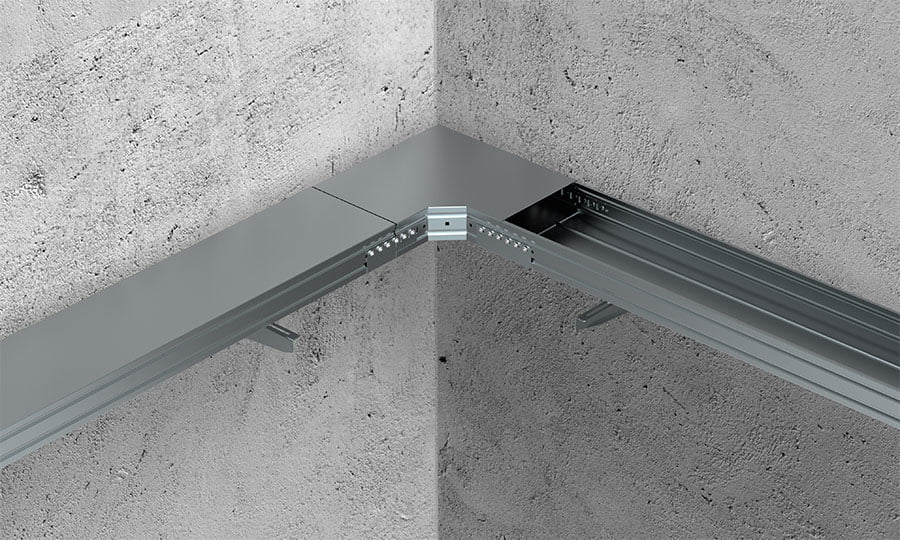

  • Horizontal 90° elbow of the trough bridge

    Horizontal 90° elbow

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge

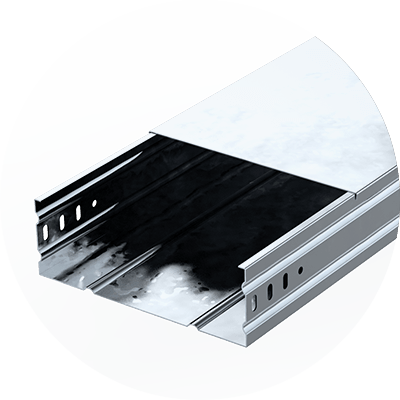

    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo

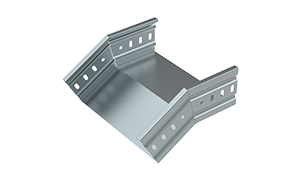

  • Grooved bridge with horizontal 135° elbows

    Horizontal 135° elbow

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo

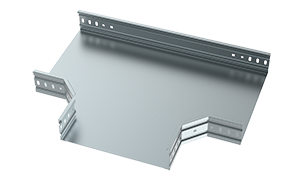

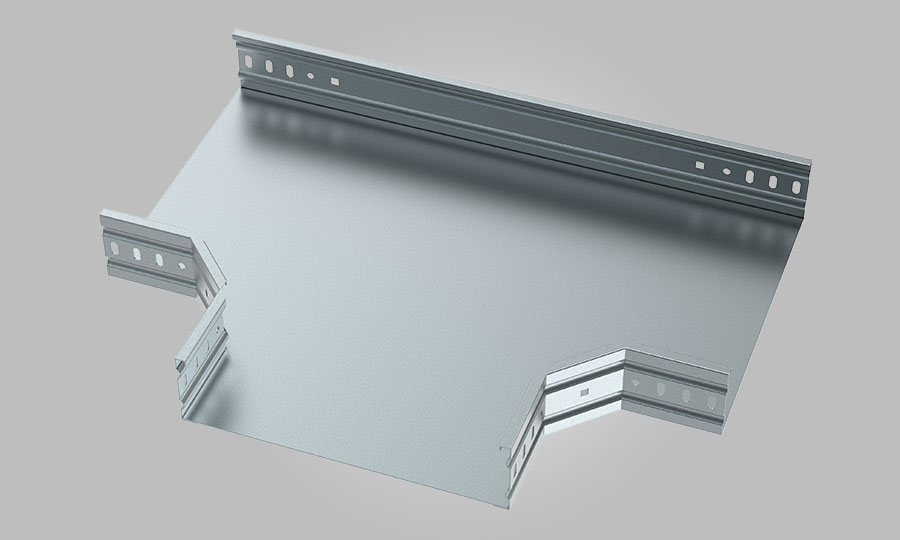

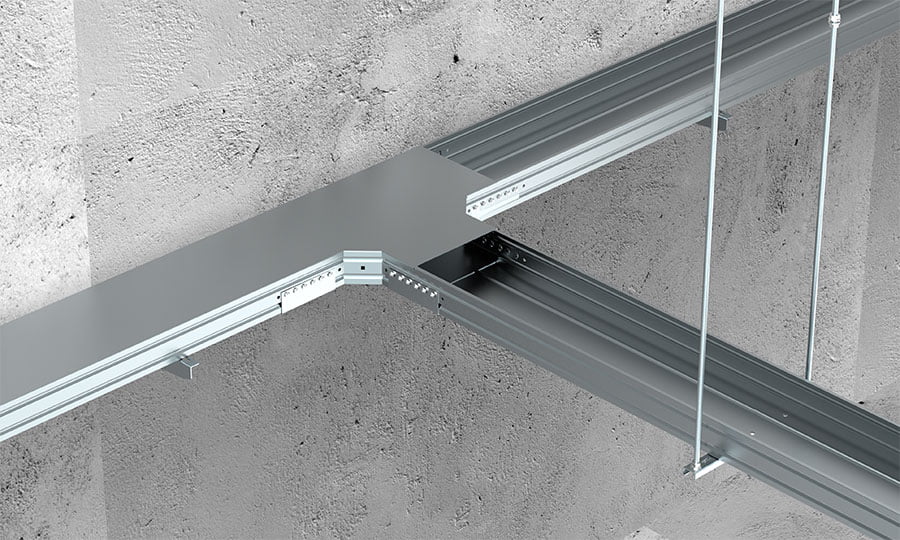

  • Trough bridge horizontal tee

    Horizontal tee

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo

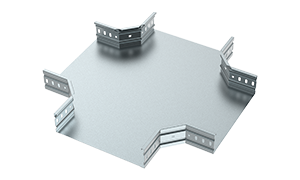

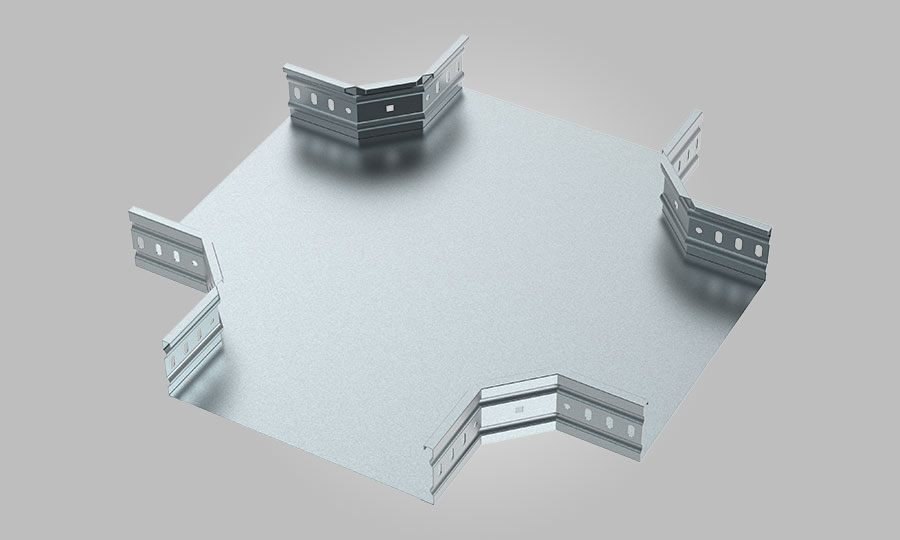

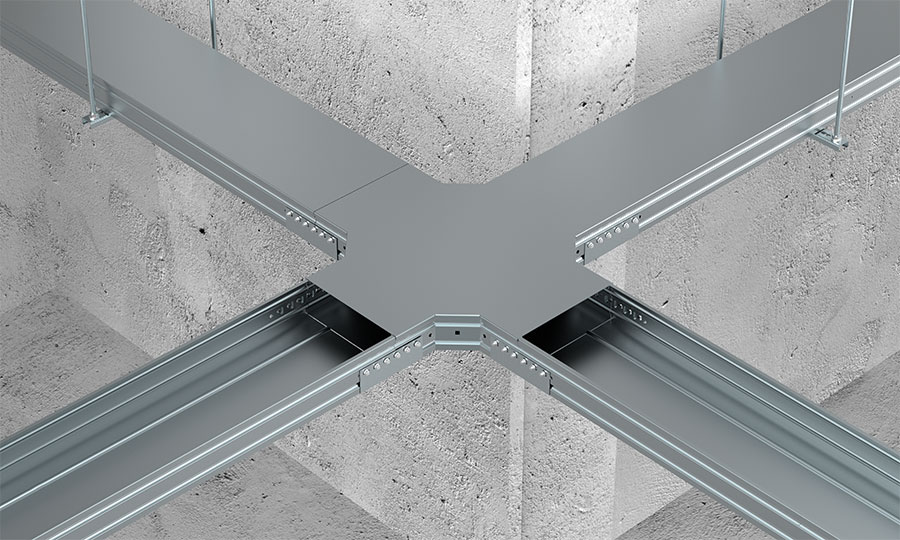

  • The trough bridge is horizontal Four-way

    Horizontal four-way

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo

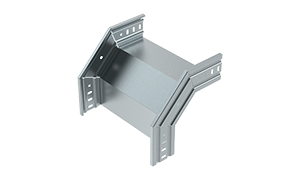

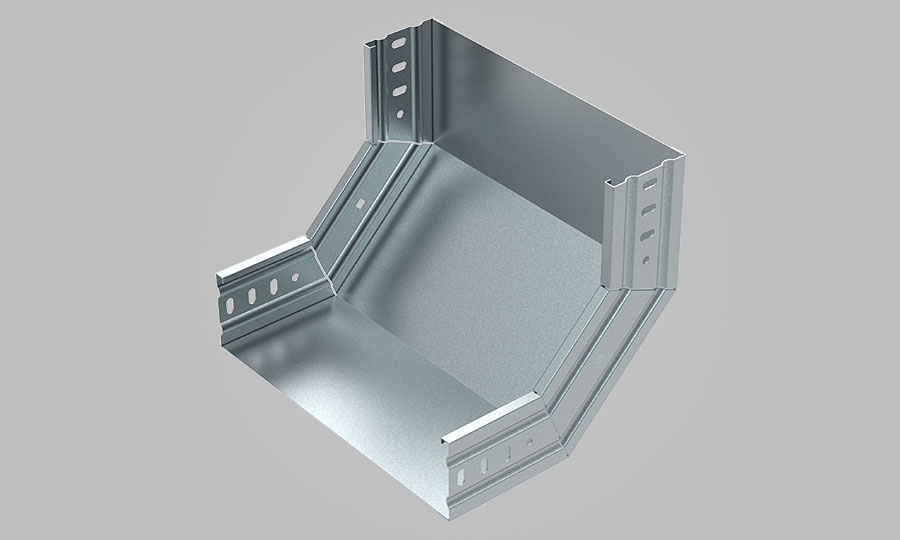

  • The trough bridge is bent upward at 45°

    45° Bend upwards

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo

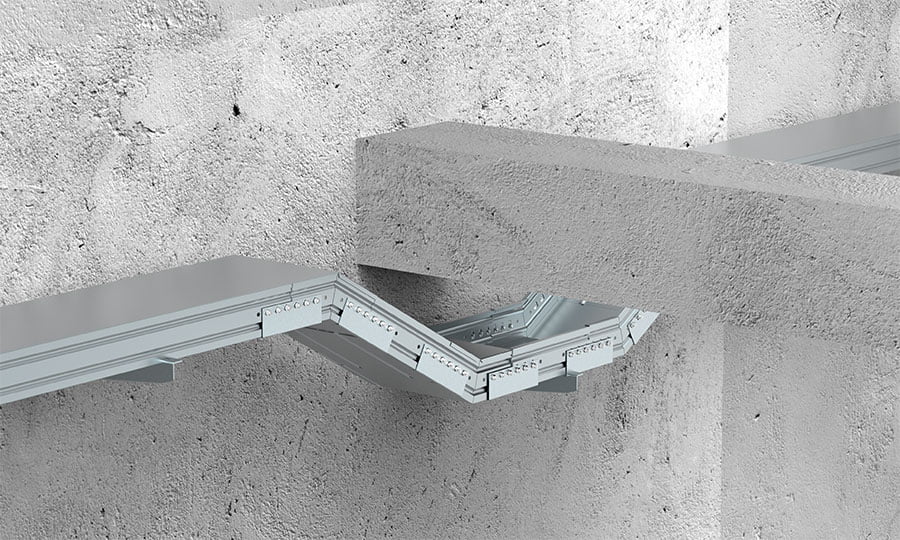

  • The trough bridge is bent downward at 45°

    45° Bend down

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo

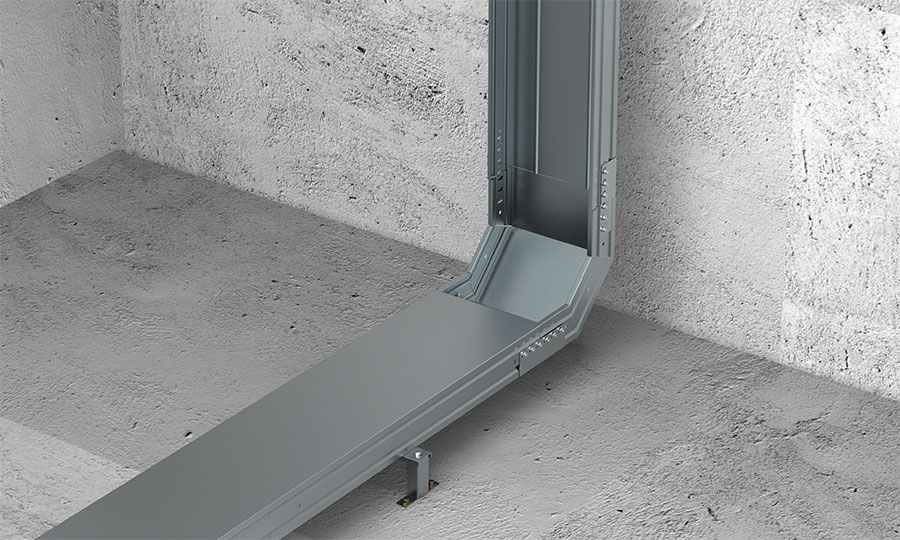

  • The trough bridge is bent upward at 90°

    Bend 90° upward

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo
  • The trough bridge is bent down at 90°

    90°Bend down

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo

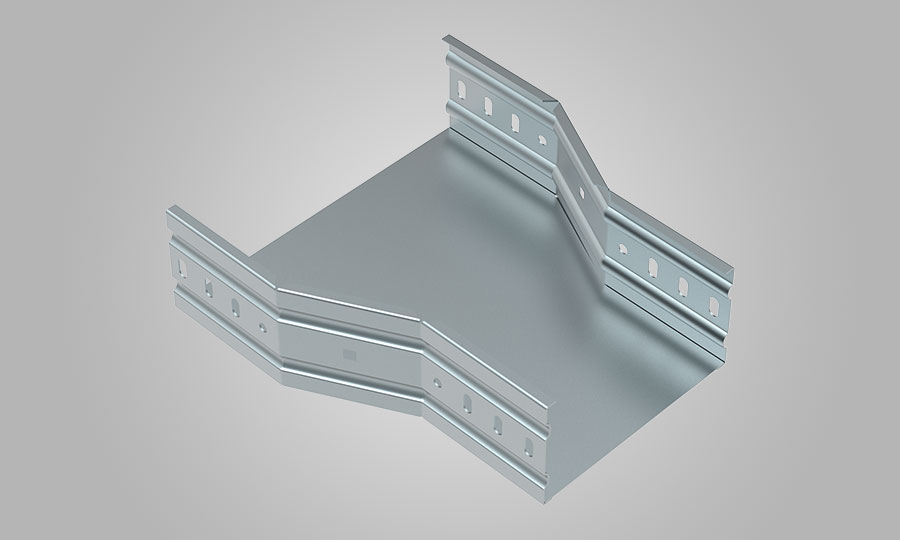

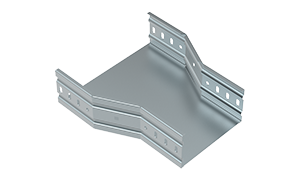

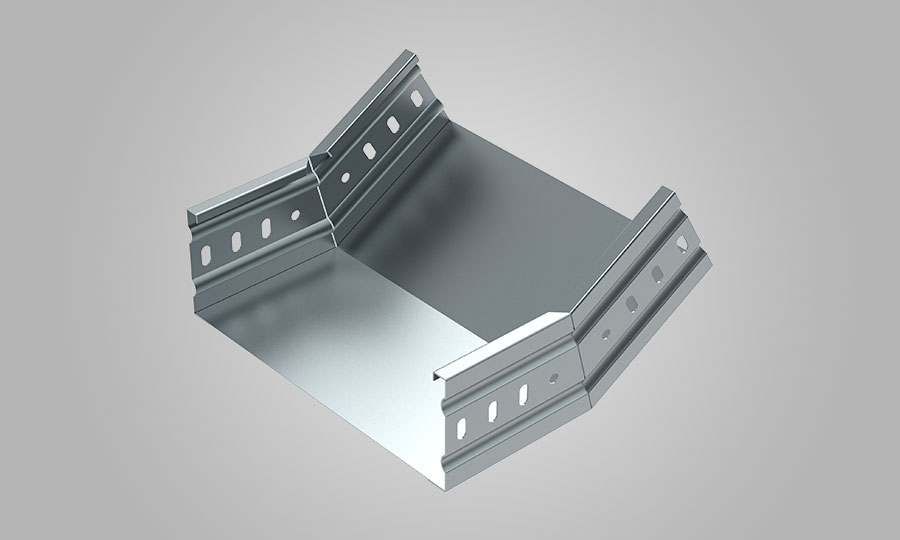

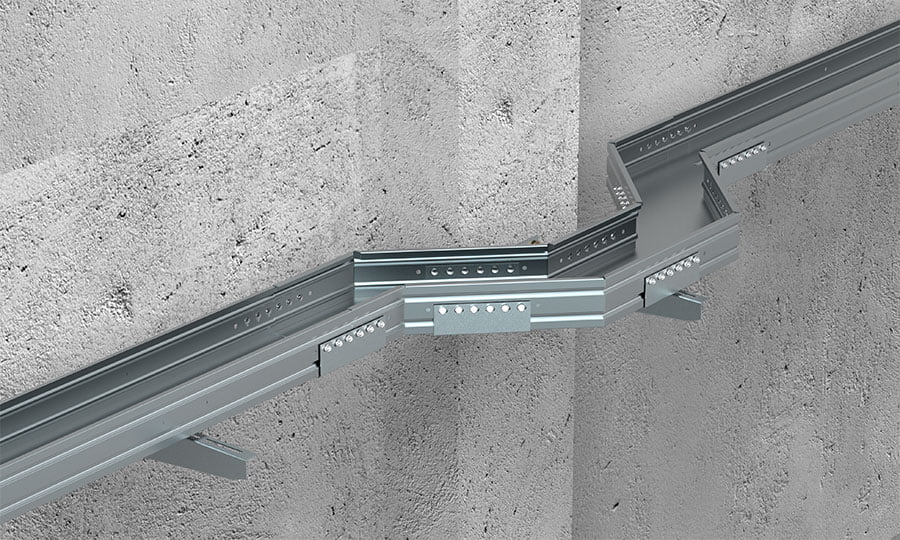

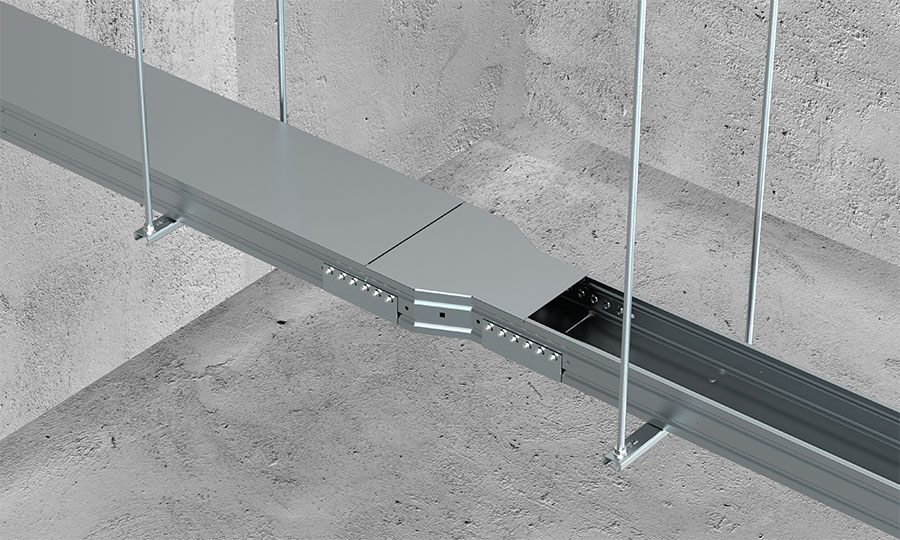

  • Trough bridge large turn small accessories

    Big to small accessories

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo
