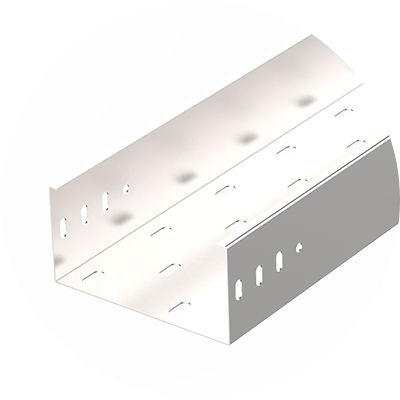

Tray cable tray series

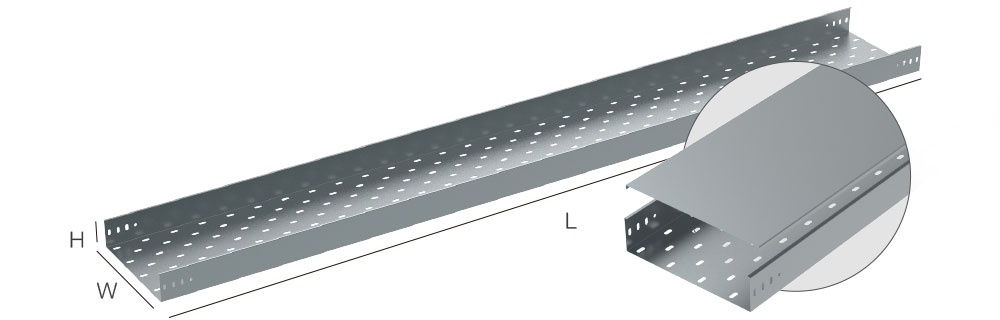

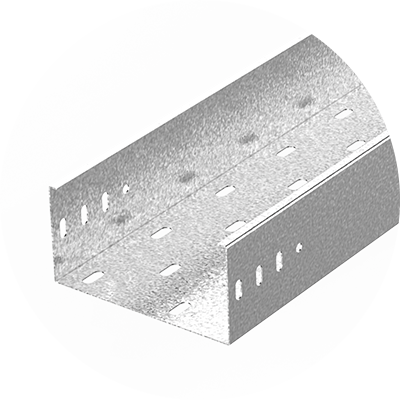

The bottom of the bridge is designed with a large area of openings, which greatly improves the heat dissipation and air permeability and reduces energy consumption. It is suitable for both the installation of power cables and the laying of control cables. The ideal cable laying device is the most widely used in electric power light industry, television, communications, etc., which has the advantages of light weight, large load, simple structure and convenient installation.

Basic information

Plate thickness(mm)
0.8/1.0/1.2/1.5/1.8/2.0
Length(mm)
2000/3000
Height(mm)
50/100/150/200
Width(mm)
50/100/150/200/300
400/450/500/600/800

Surface treatment

Application scenarios

Product accessories

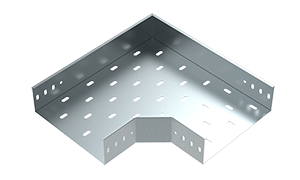

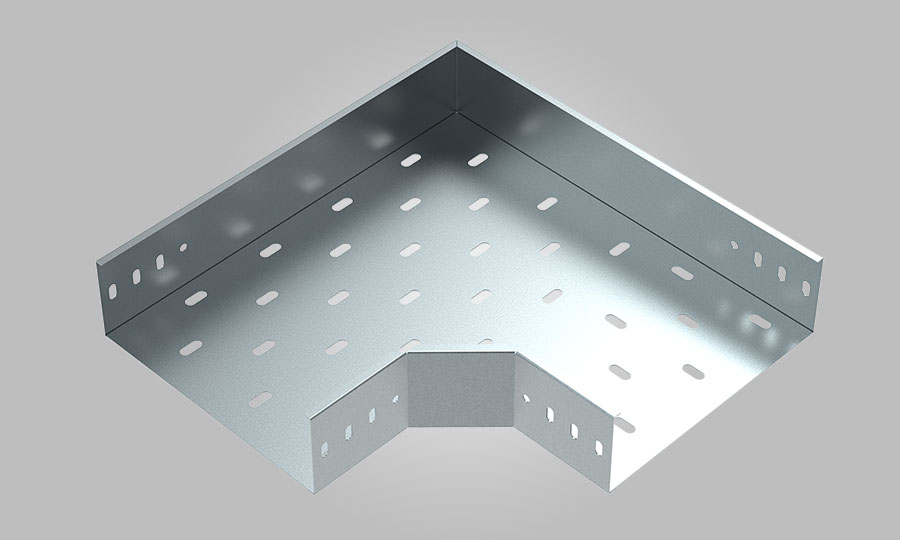

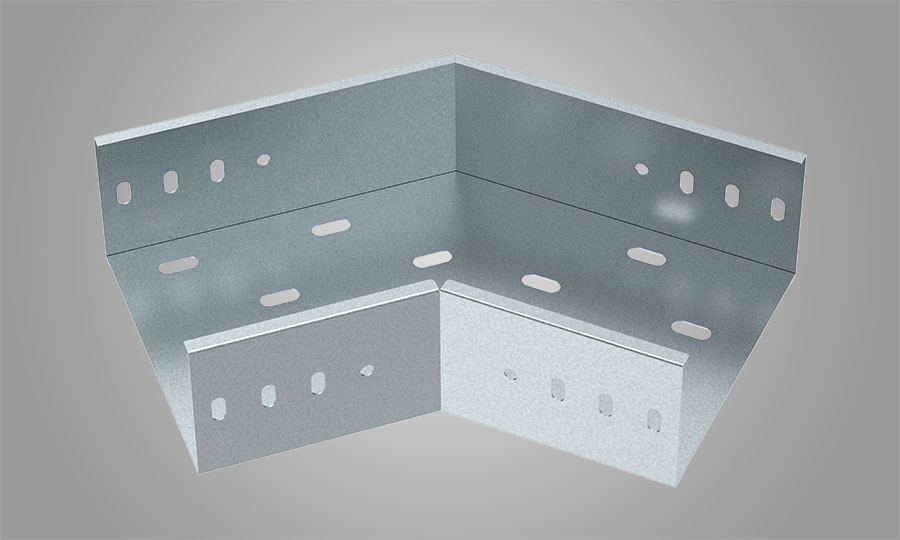

  • Horizontal 90° elbow of the trough bridge

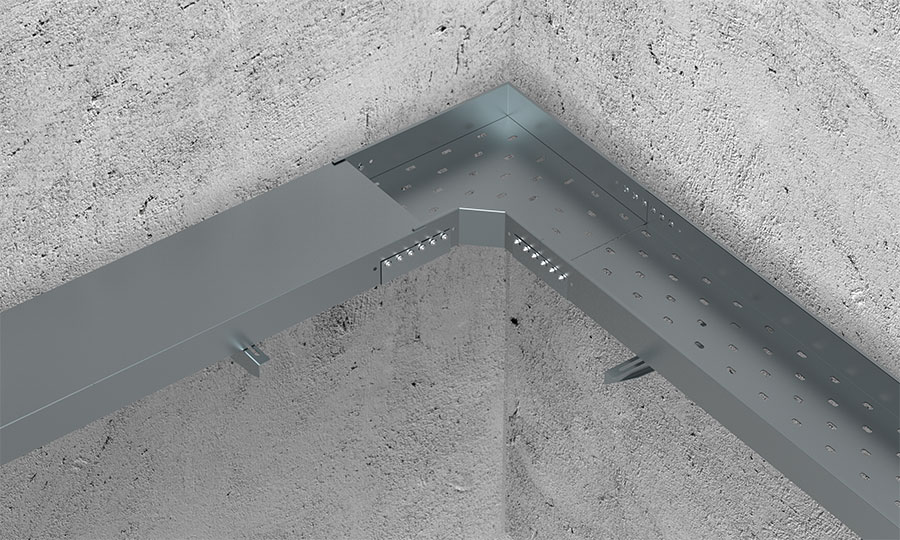

    Horizontal 90° elbow

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge

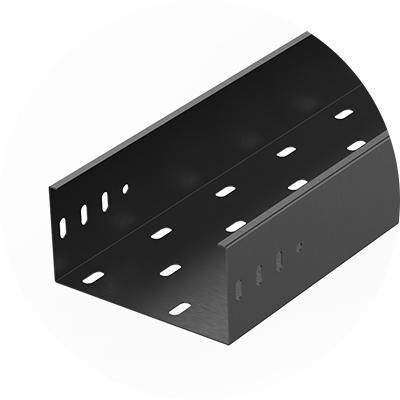

    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;

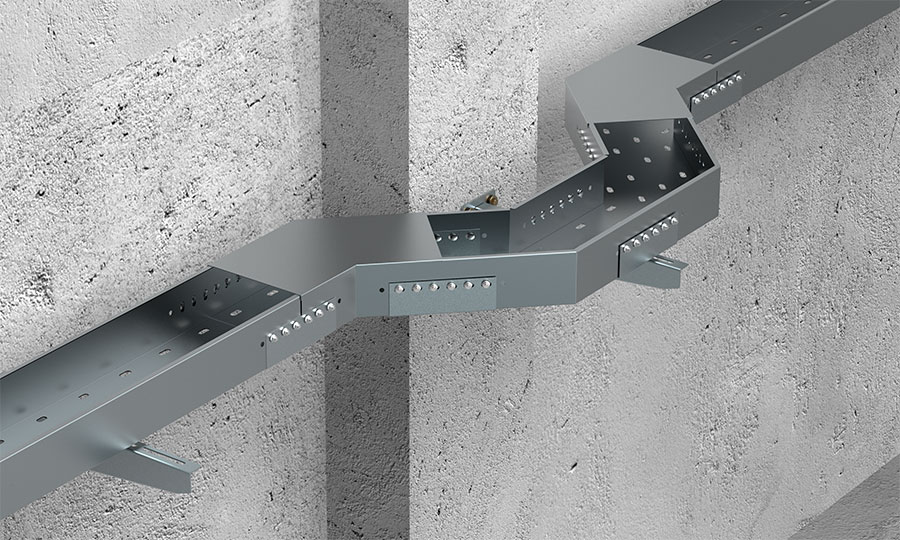

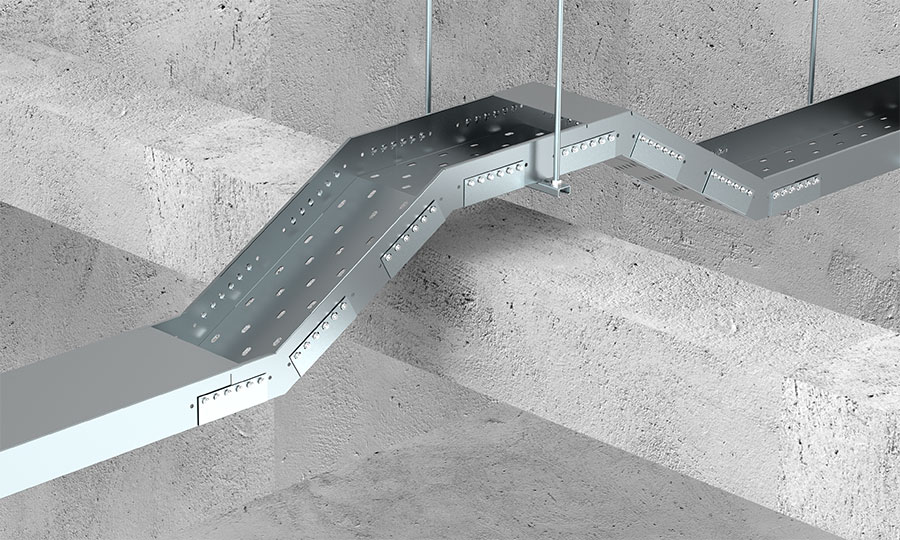

    Install the demo
  • Grooved bridge with horizontal 135° elbows

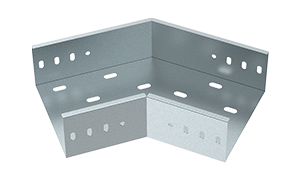

    Horizontal 135° elbow

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;

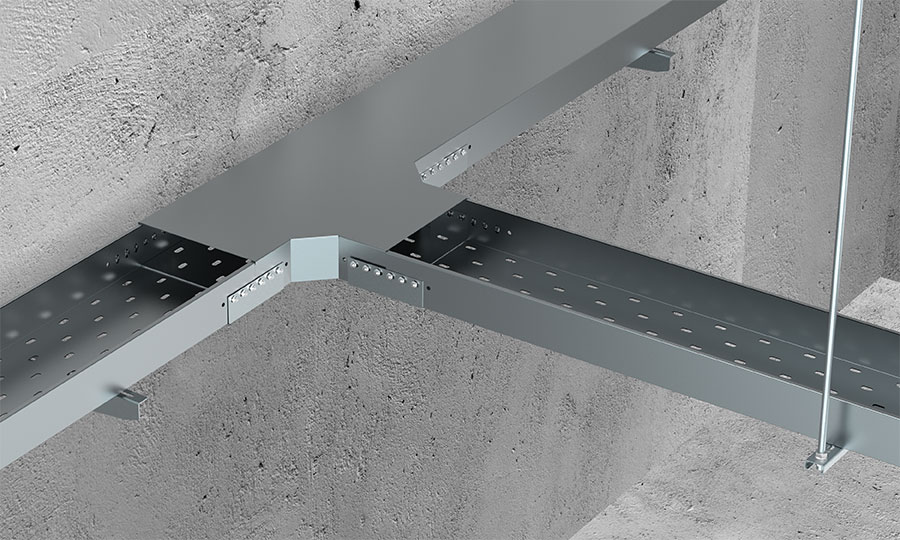

    Install the demo

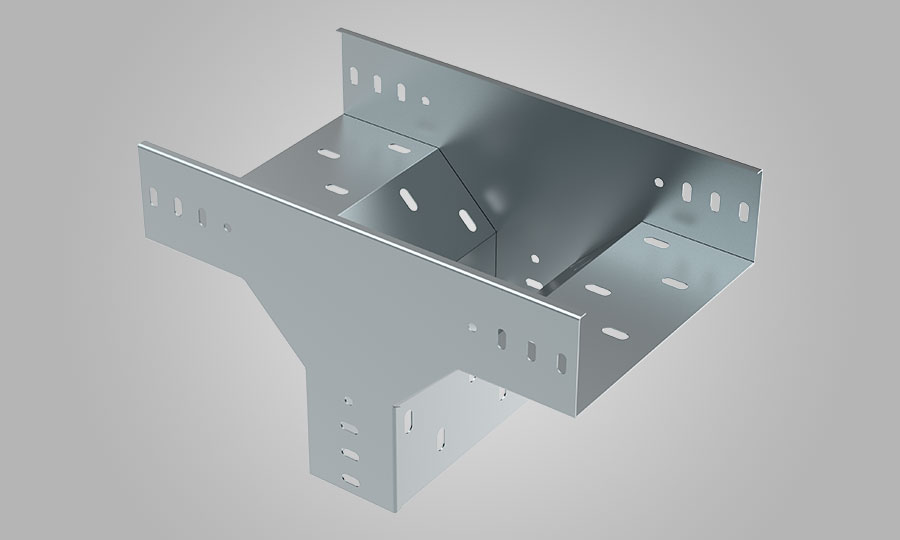

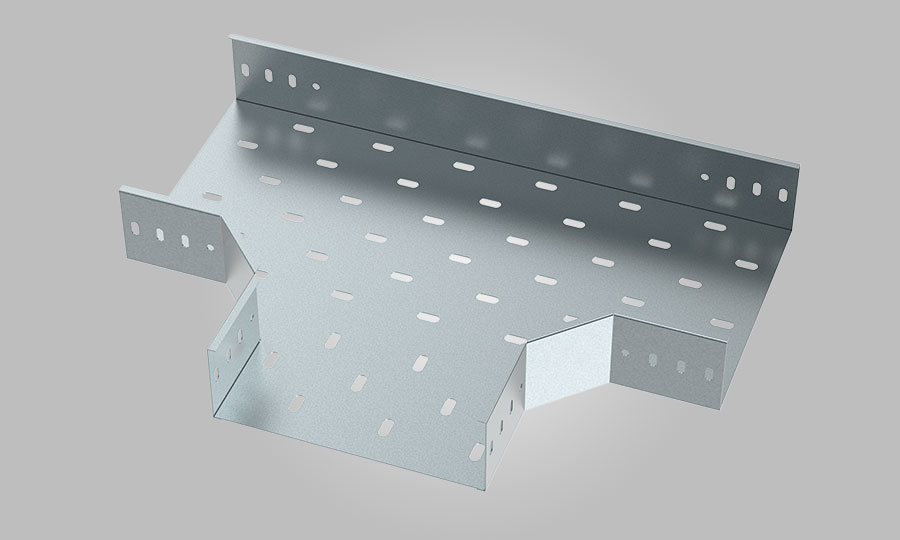

  • Trough bridge horizontal tee

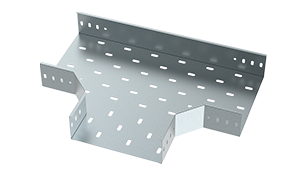

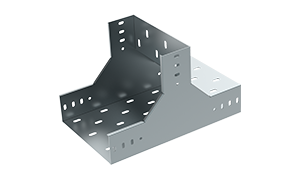

    Horizontal tee

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo
  • The trough bridge is horizontal and tee

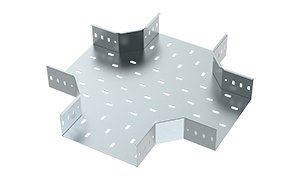

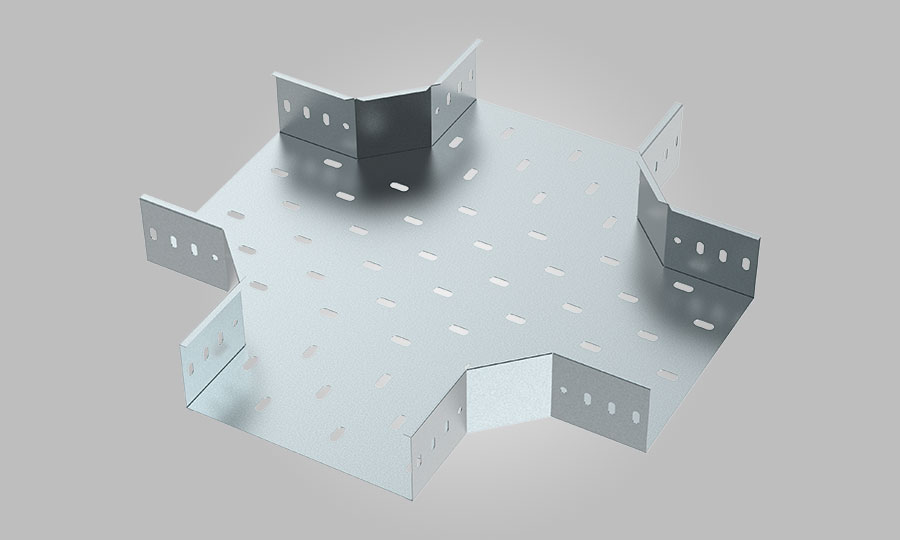

    Horizontal Four-way

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo

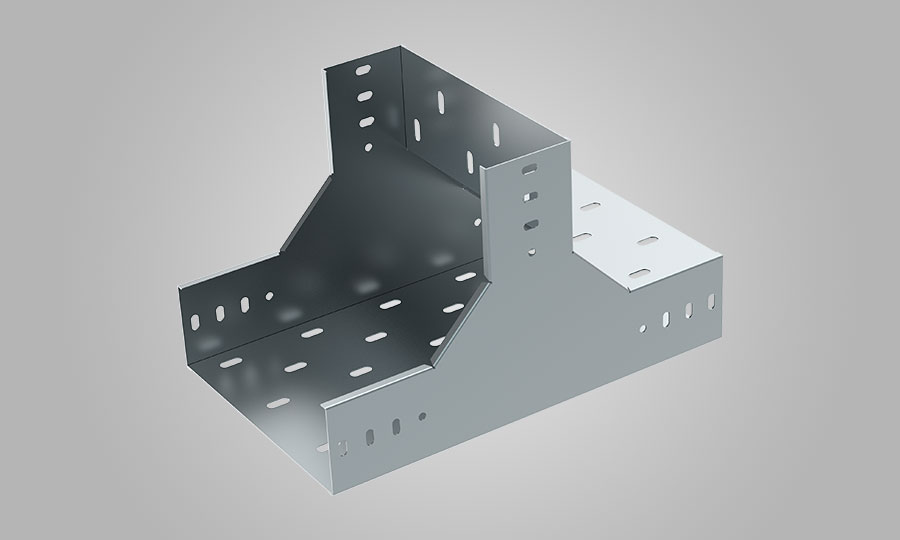

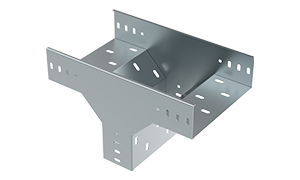

  • Vertical tee on trough bridge

    On the vertical tee

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo

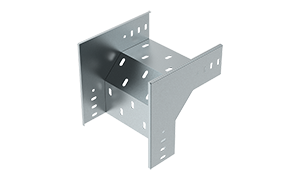

  • Vertical tee under the trough bridge

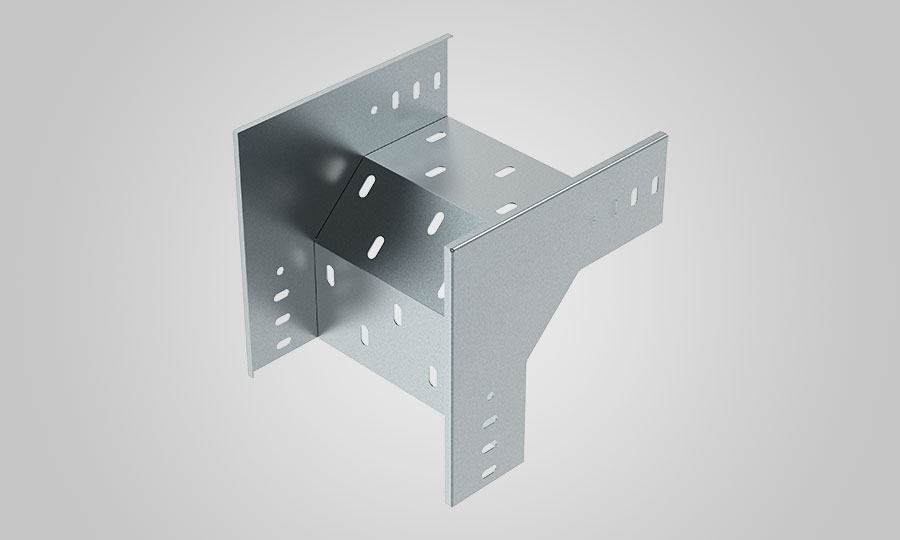

    Lower vertical tee

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo

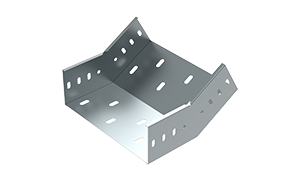

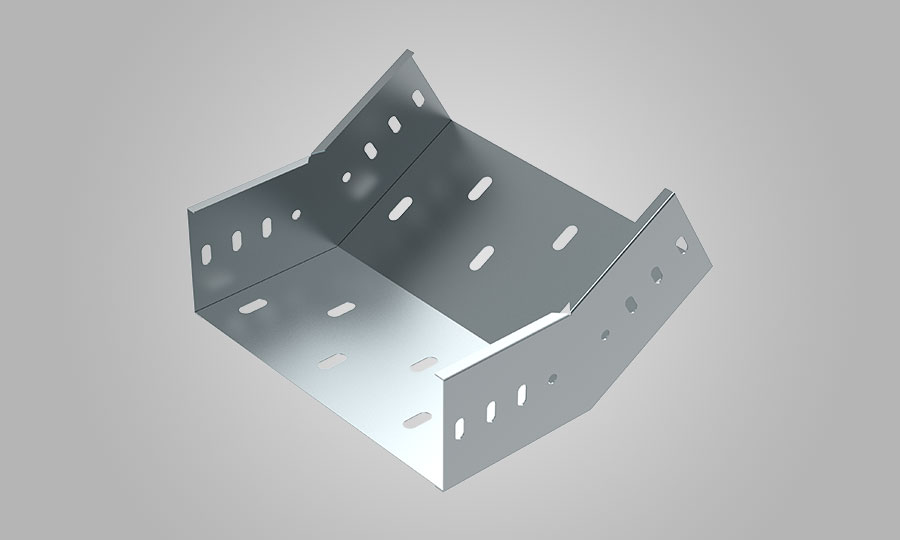

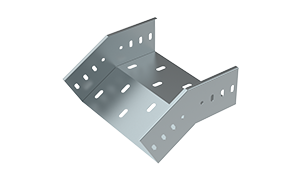

  • The trough bridge is bent upward at 45°

    Bend upward at 45°

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo
  • The trough bridge is bent downward at 45°

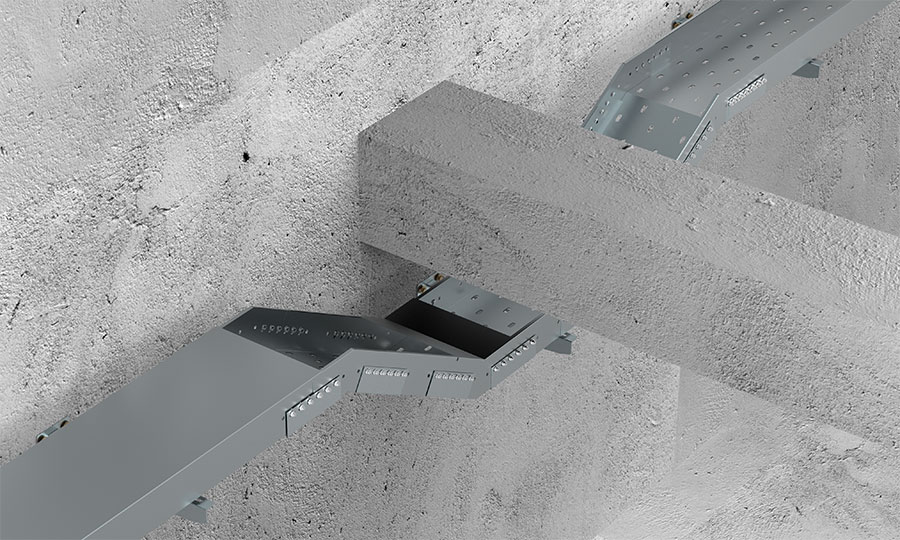

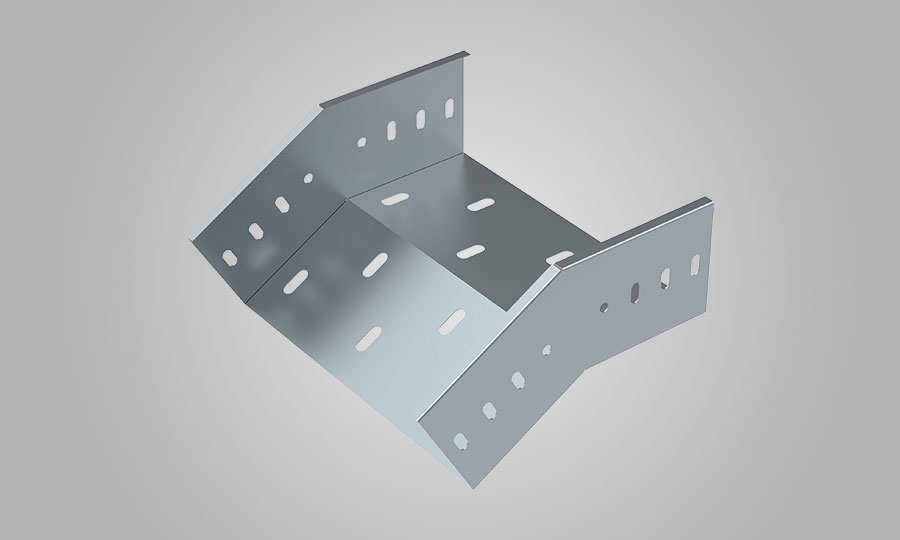

    Bend down at 45°

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo
  • The trough bridge is bent upward at 90°

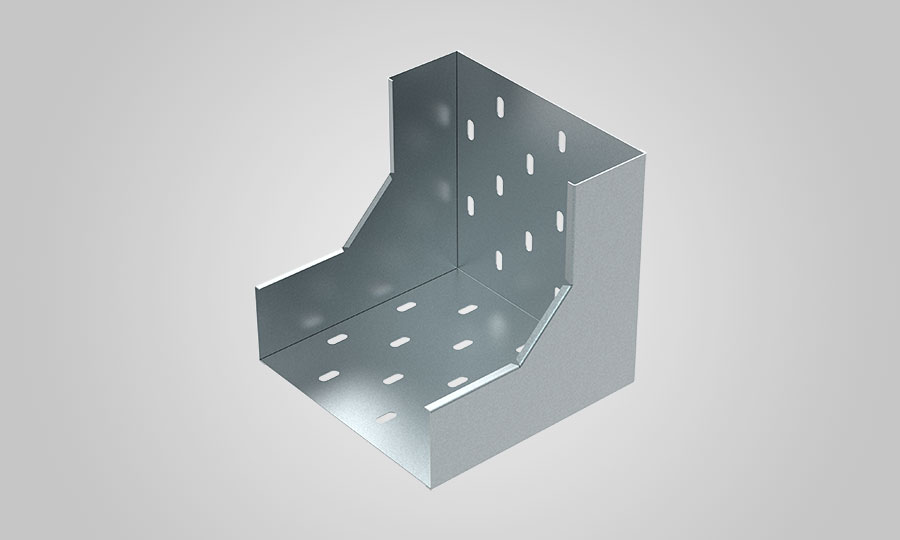

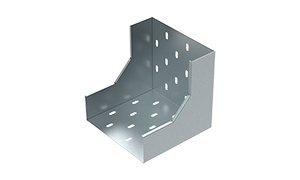

    Bend 90° upward

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo
  • The trough bridge is bent down at 90°

    Bend 90° downward

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo

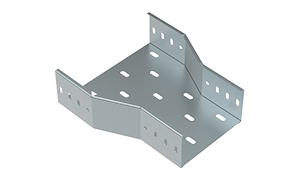

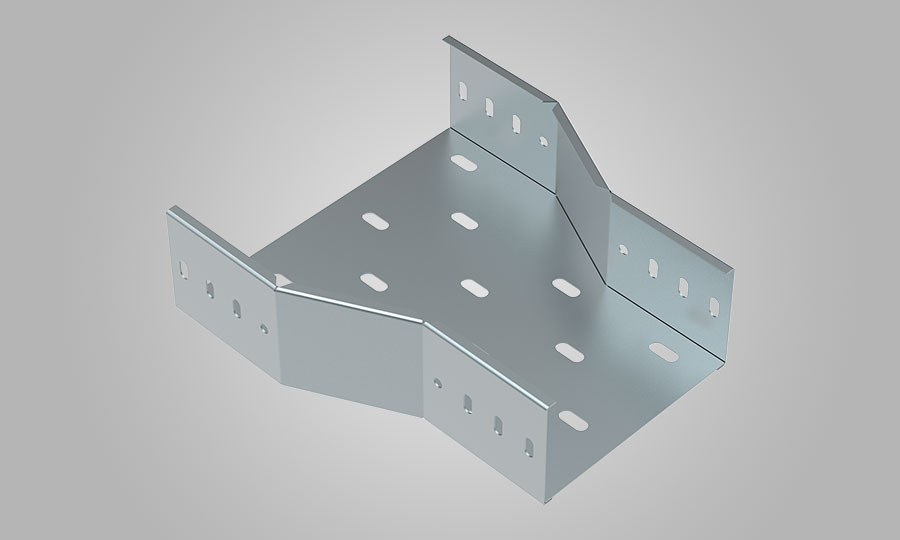

  • Trough bridge large turn small accessories

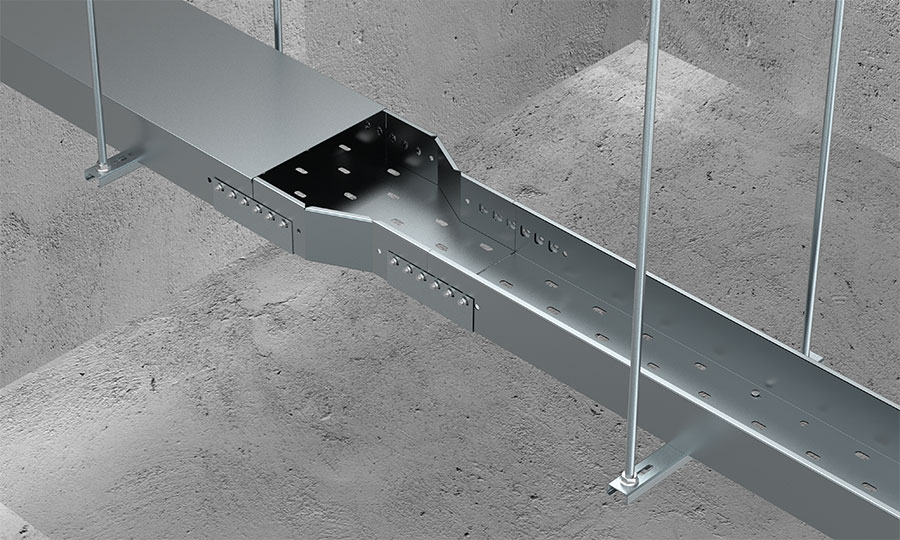

    Big to small accessories

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo
