Trough cable tray series

Trough cable tray for fully enclosed cable laying. It is best suited for laying computer cables, communication cables, thermocouple cables and other control cables for highly sensitive systems. It has a good effect on the shielding interference of control cables and the protection of cables in heavily corroded environments.

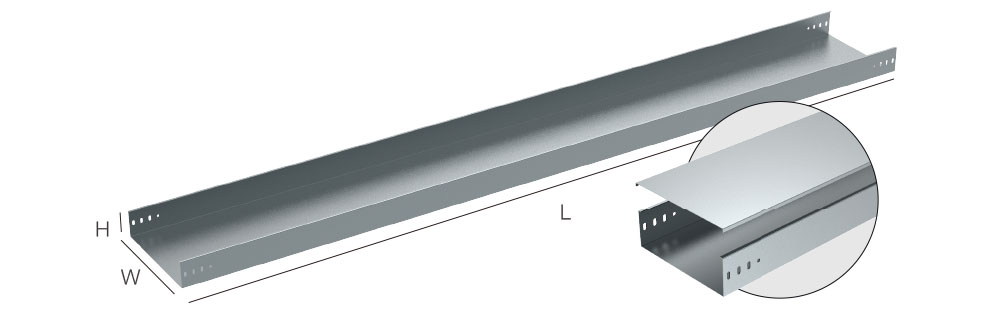

Basic information

Plate thickness(mm)
0.8/1.0/1.2/1.5/1.8/2.0
length(mm)
2000/3000
Height(mm)
50/100/150/200
Width(mm)
50/100/150/200/300
400/450/500/600/800

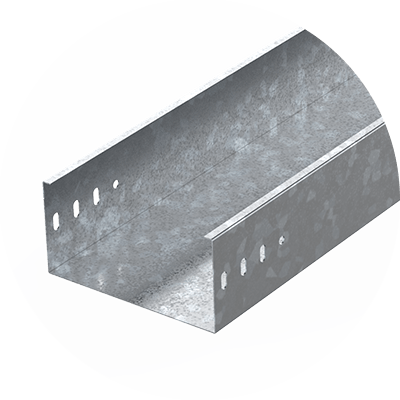

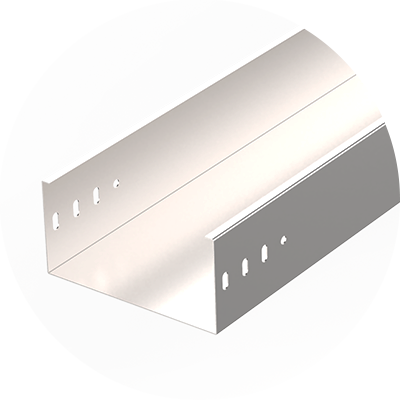

Surface treatment

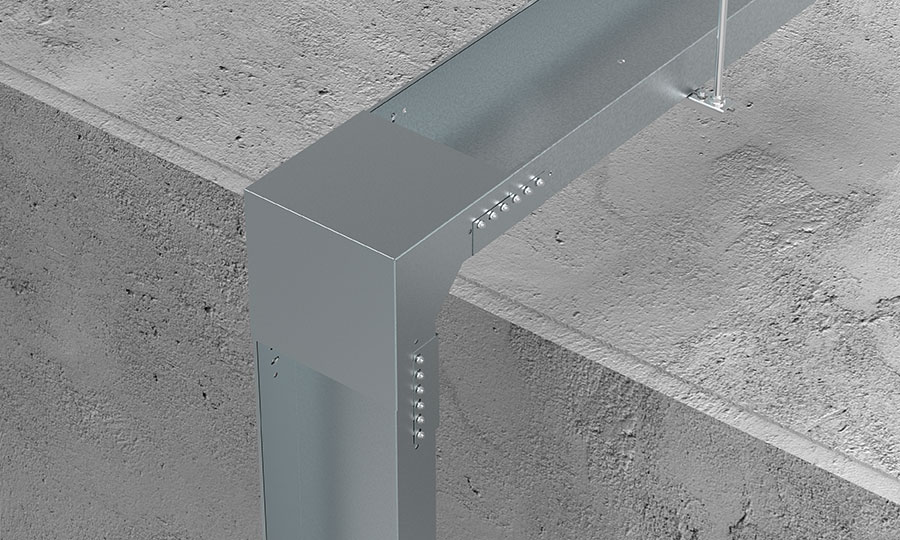

Application scenarios

Product accessories

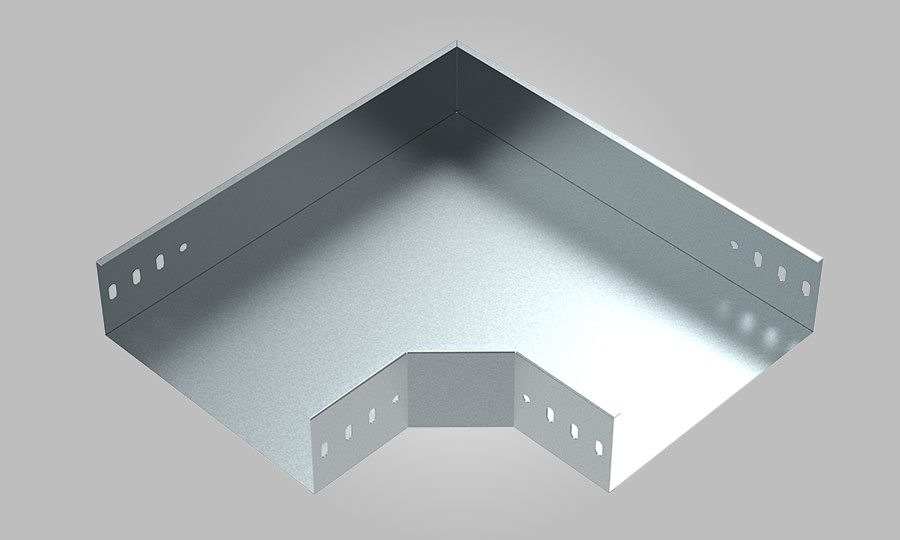

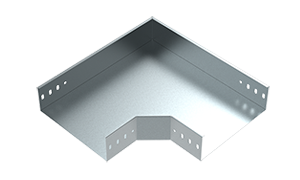

  • t-stack horizontal 90° elbow

    Horizontal 90° elbow

    • Plate thickness: 0.8/1.0/1.2/
    1.5/1.8/2.0 (mm).
    • Specification size: configure according to the size of the bridge
    • Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    • Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    • Cover plate optional;
    Install the demo

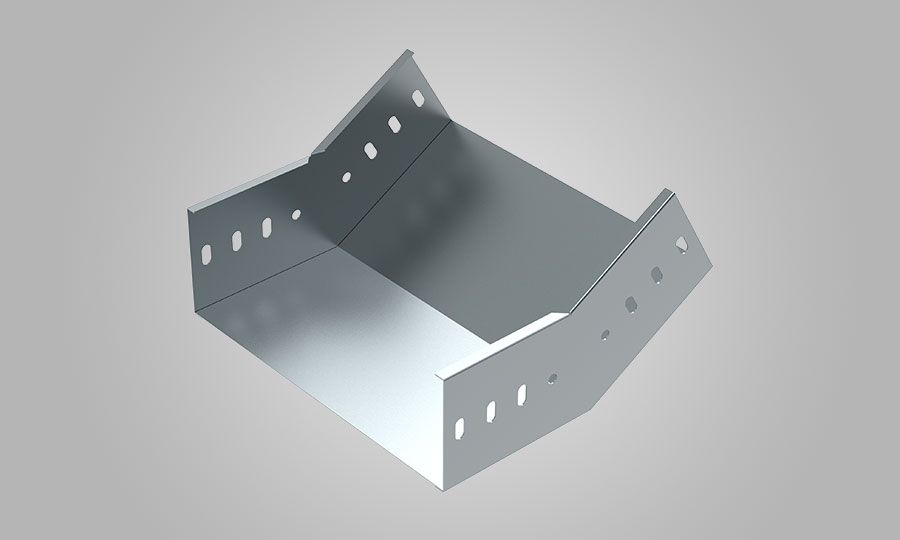

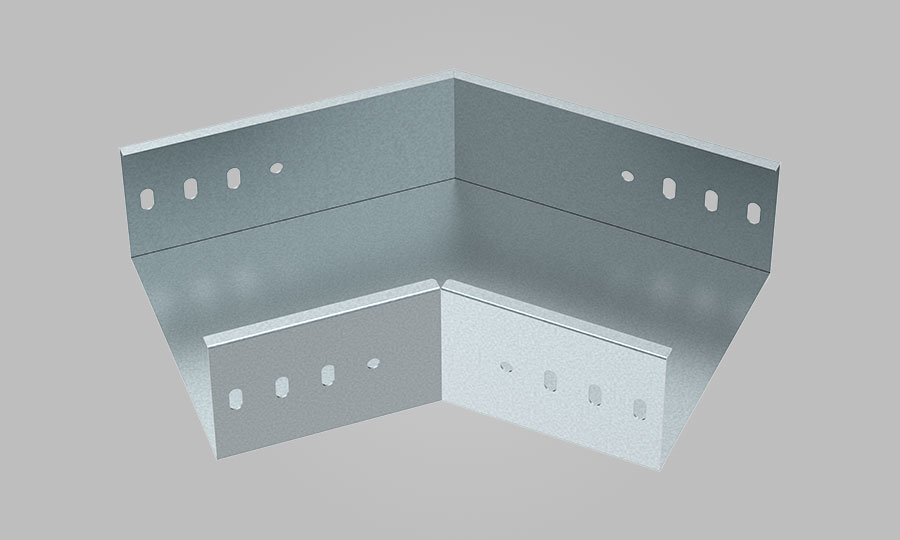

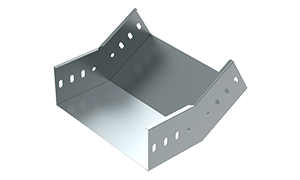

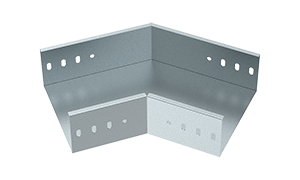

  • Grooved bridge with horizontal 135° elbows

    Horizontal 135° elbow

    • Plate thickness: 0.8/1.0/1.2/
    1.5/1.8/2.0 (mm).
    • Specification size: configure according to the size of the bridge
    • Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    • Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    • Cover plate optional;
    Install the demo

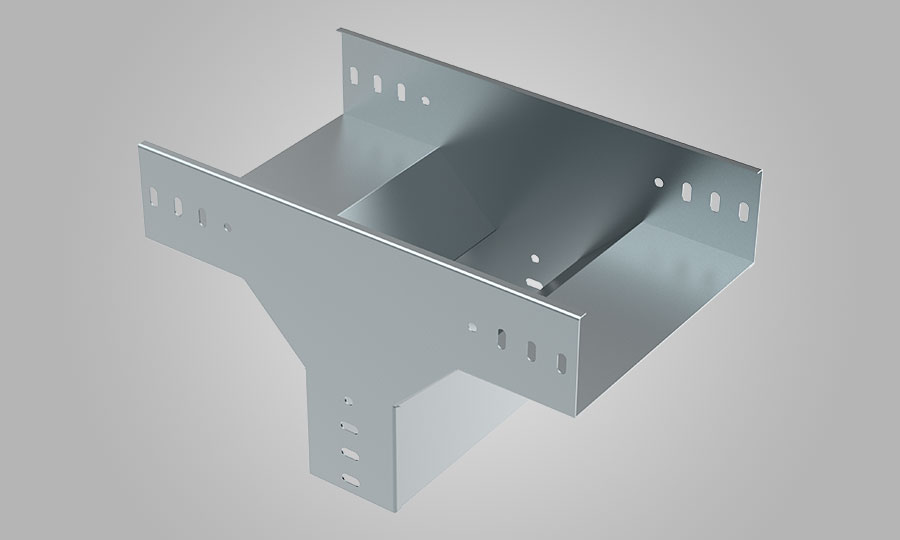

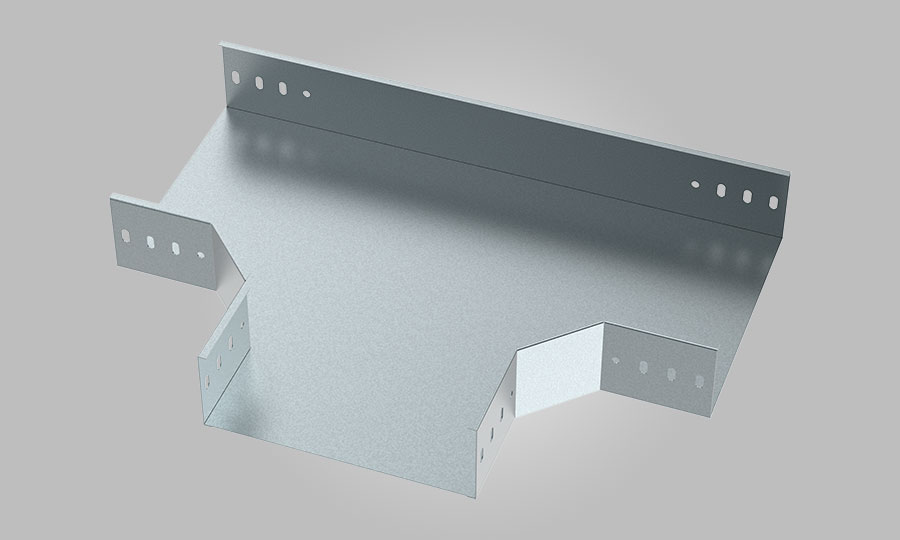

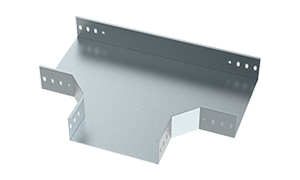

  • Trough bridge horizontal tee

    Horizontal tee

    • Plate thickness: 0.8/1.0/1.2/
    1.5/1.8/2.0 (mm).
    • Specification size: configure according to the size of the bridge
    • Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    • Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    • Cover plate optional;
    Install the demo

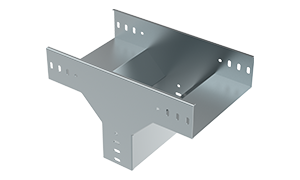

  • The trough bridge is horizontal and tee

    Horizontal tee

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo

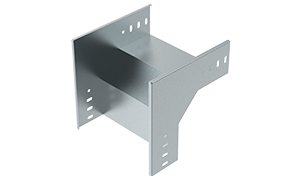

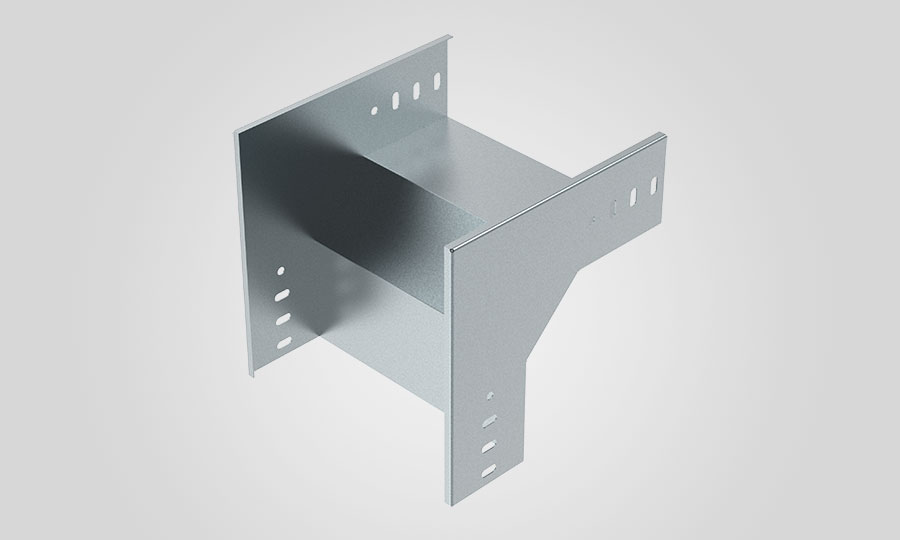

  • Vertical tee on trough bridge

    On the vertical tee

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo
  • Vertical tee on trough bridge

    Lower vertical tee

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo

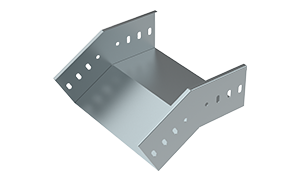

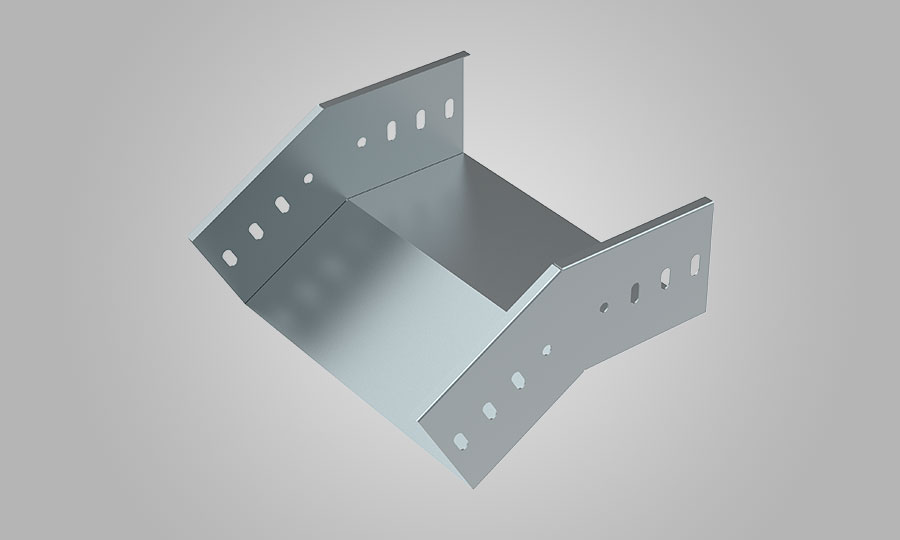

  • The trough bridge is bent upward at 45°

    Bend upward at 45°

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo
  • The trough bridge is bent downward at 45°

    45° Bend down

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo
  • The trough bridge is bent downward at 45°

    90° Bend upwards

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo
  • The trough bridge is bent down at 90°

    Bend 90° downward

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo

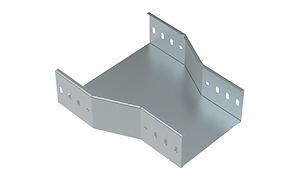

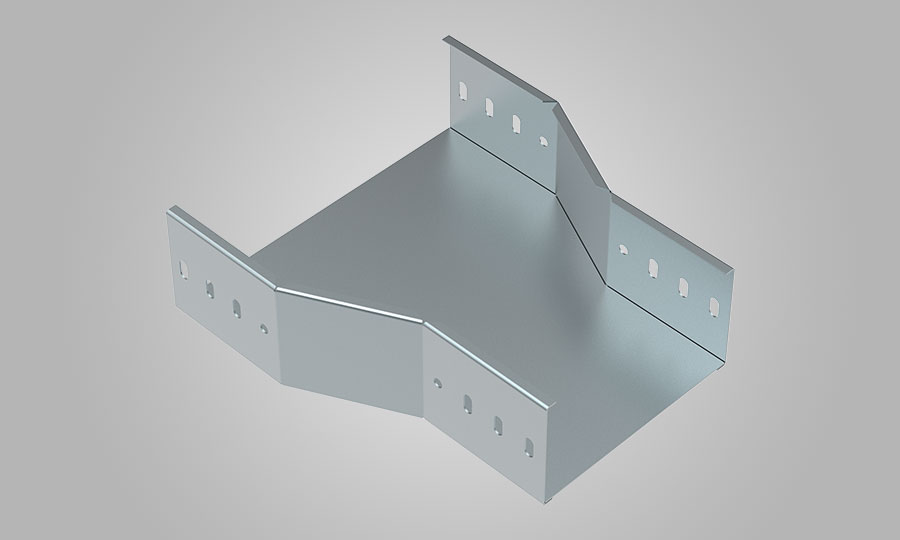

  • Trough bridge large turn small accessories

    Big to small accessories

    •Plate thickness：0.8/1.0/1.2/1.5/1.8/2.0（mm）
    •Specification size: configured according to the size of the bridge
    •Surface treatment: galvanized sheet/hot-dip galvanized/sprayed/stainless steel
    •Butt hole: height≤100mm=1 row; Height≥ 150mm=2 rows
    •Cover plate optional;
    Install the demo
