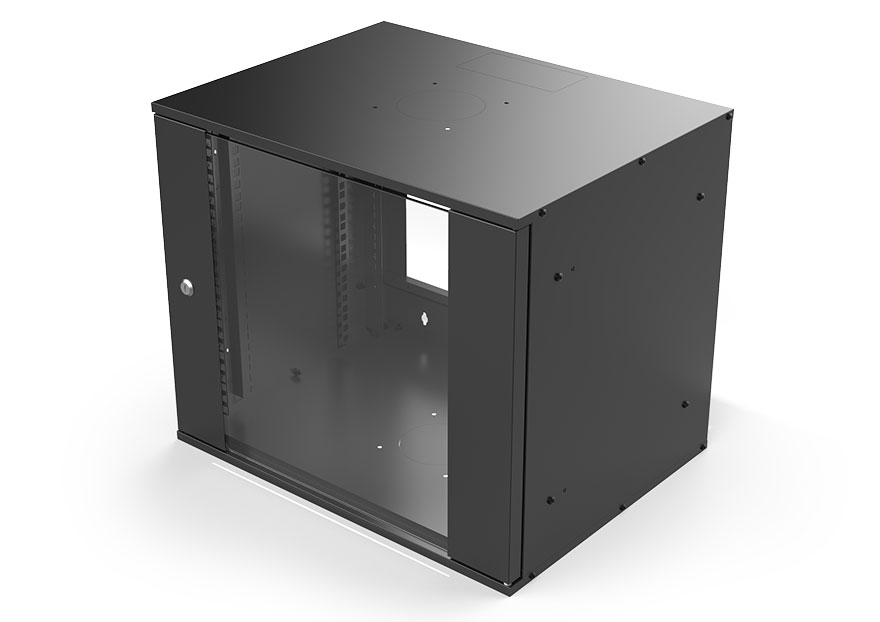

KU5 series wall-mounted cabinet

Wall-mounted load

50KG

Monolithic design

Product standards

Basic information

Capacity(U)
4/6/9/12
Width(mm)
520
Depth(mm)
400

Plate thickness

Column1.7(mm)
Frame0.8(mm)
Top cover0.8(mm)
Motherboard0.8(mm)

Provide a variety of wall-mounted cabinet sizes and components, flexible configuration according to different application needs;
Integral frame structure, solid and reliable structure;
Multiple routing channels in the upper, lower and rear parts to facilitate on-site wiring;
A variety of wall-mounted installation methods rotate, easy to operate;
Built-in side door, tool-free installation and removal, optional locking and tamper-proof design;
The front door can be quickly removed and interchanged left and right without tools, and the opening angle is 180°, which is convenient for equipment installation and maintenance;
Many places in the cabinet are equipped with grounding copper nails to facilitate the grounding of the equipment;
Optional castors or adjustable movable feet for ground-mounting;
Load-bearing capacity: static loading 50kg;
The surface treatment is degreasing, pickling, anti-rust phosphating, pure water cleaning, electrostatic spraying, in line with European RoHS environmental protection standards.

Cabinet door style

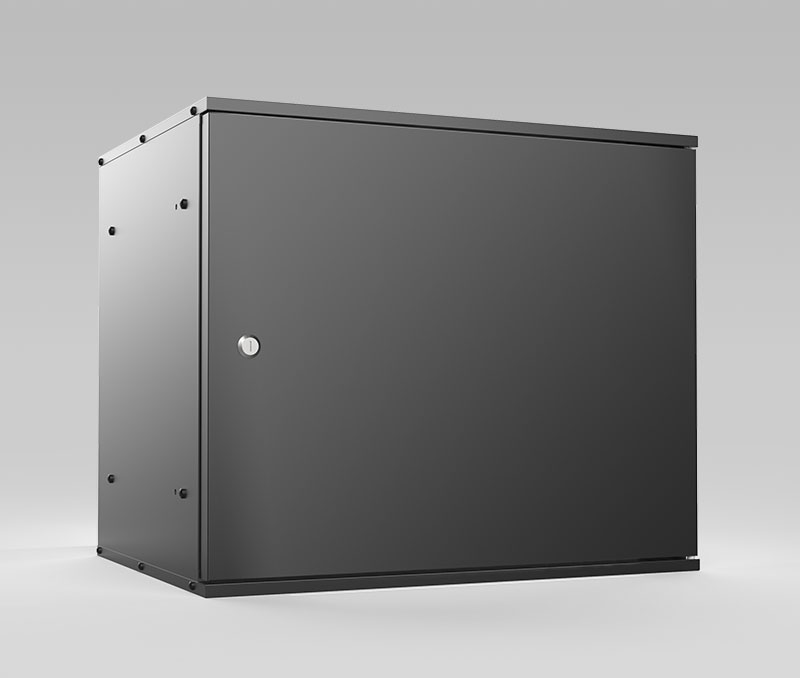

  • A

    Steel door

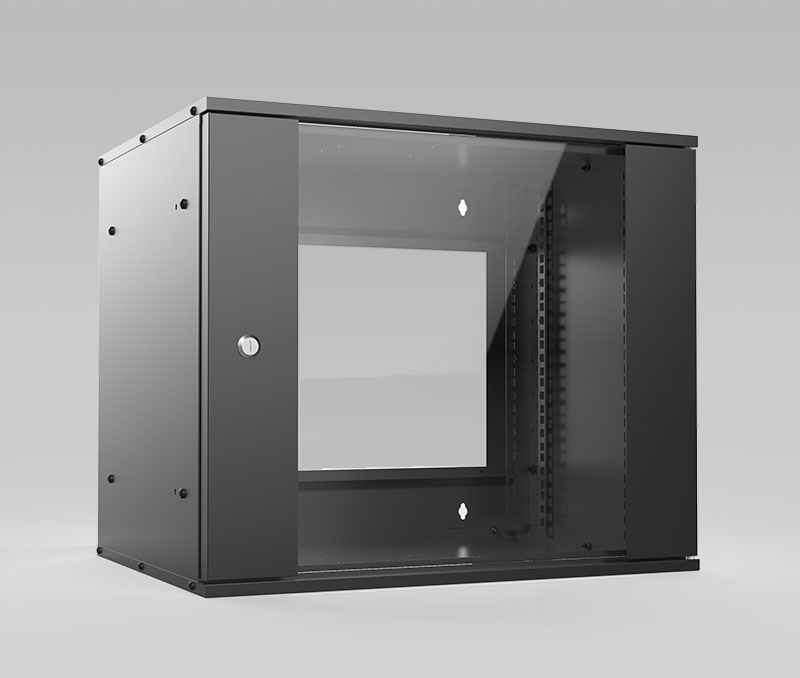

  • B

    Glass door with fiame

Product details

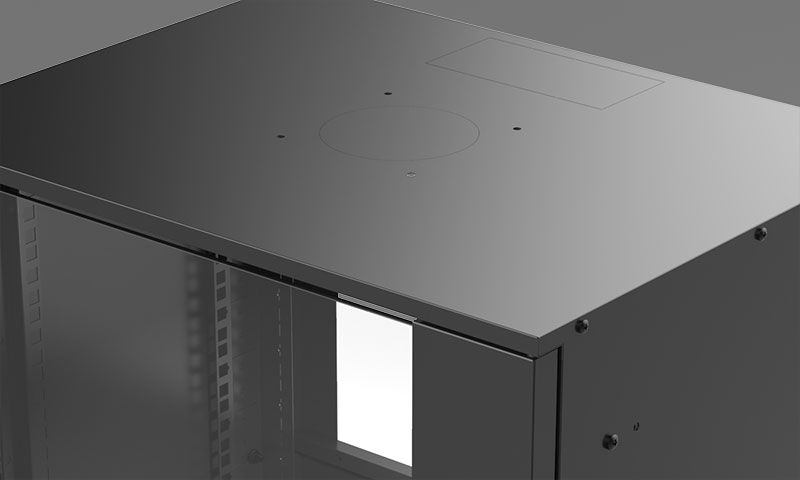

  • The top can be entered, with smashing holes

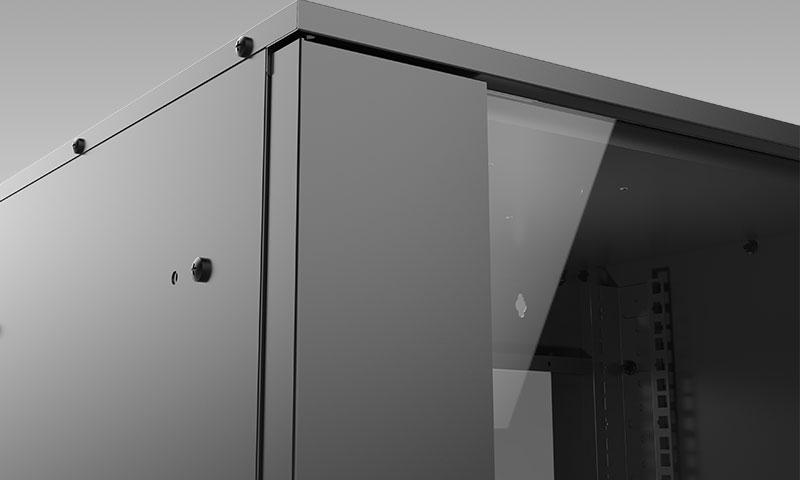

  • All glass door cabinets feature 3C certified tempered glass

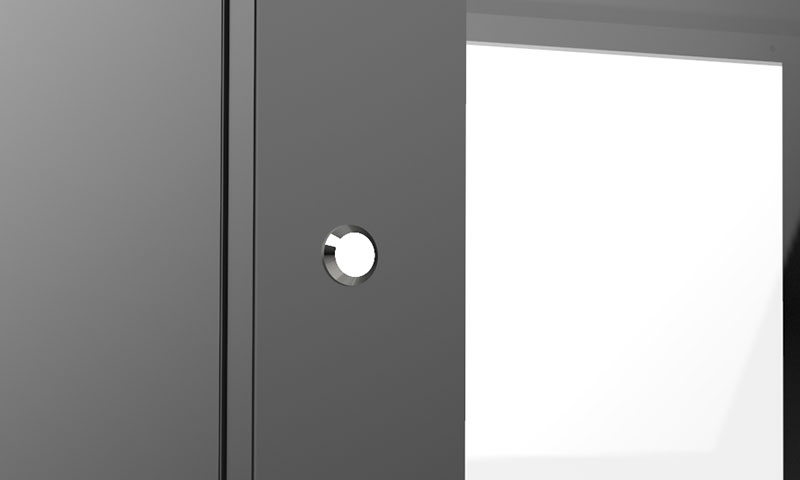

  • Front door anti-theft lock, simple and easy to use

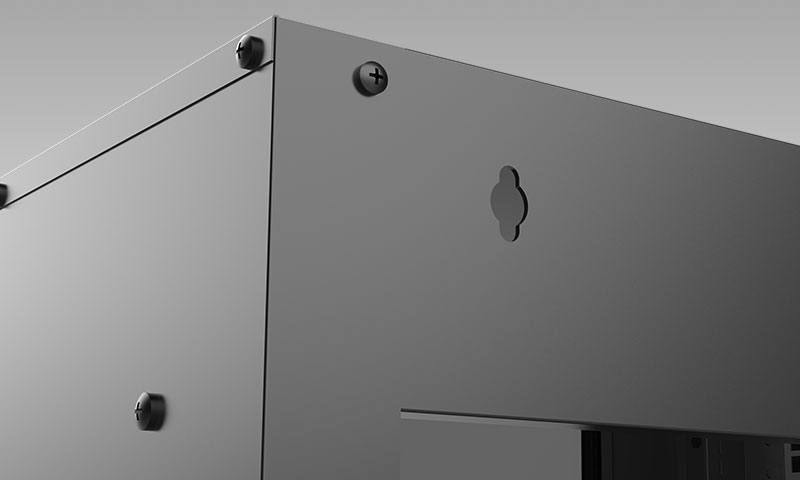

  • Back mounting plate design, easy to install on the wall.

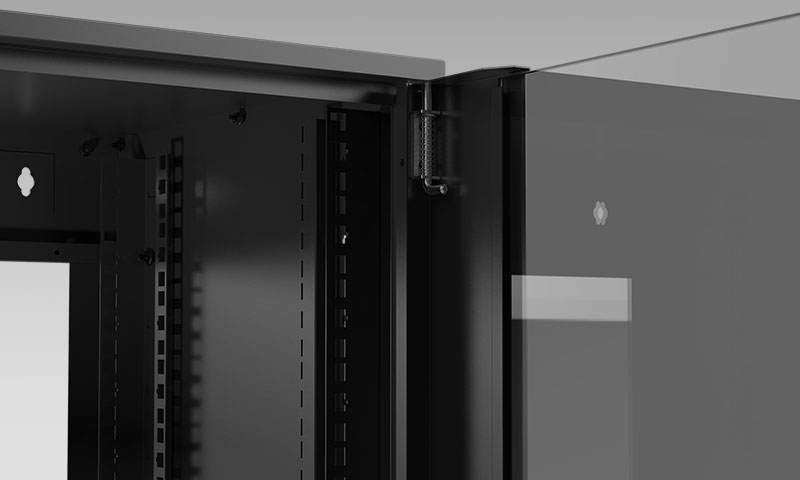

  • The front door can be quickly removed and interchanged left and right without tools, and the opening angle is 180°

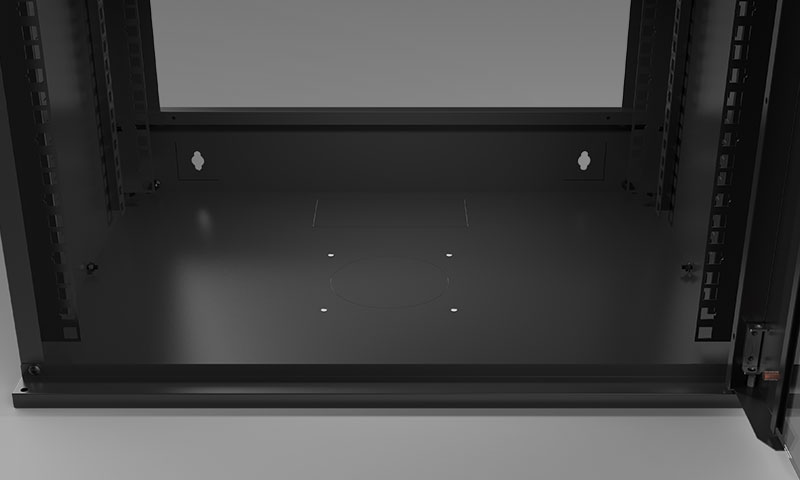

  • The bottom strip plate is removable for easy wiring
